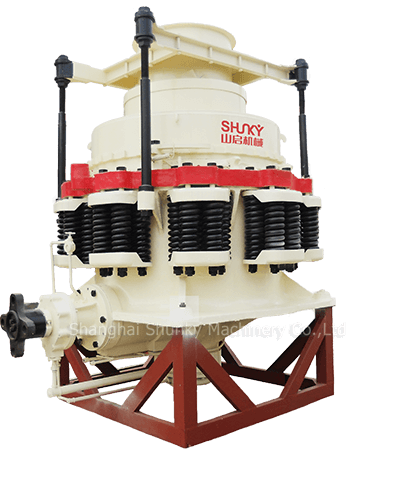

PY Series Spring Cone Crusher

PY series cone crusher is widely used in sand quarry, mining, coal mining, concrete mixing plant, dry powder mortar, power plant desulfurization and quartz sand.

Applications: Basalt, granite, river stone and all kinds of ores and rocks with medium and above hardness.

5-750 T/HCapacity 30-280Power(kw)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

PY series spring cone crusher is the first cone crusher, which is based on absorbing the internationally advanced technique; It has been used in the secondary and tertiary crushing. The spring insurance system is the overload protection device; The sealed form is dry oil or water; According to the crushed ore use, it is divided into three types: the standard type; the medium type and the short head type.

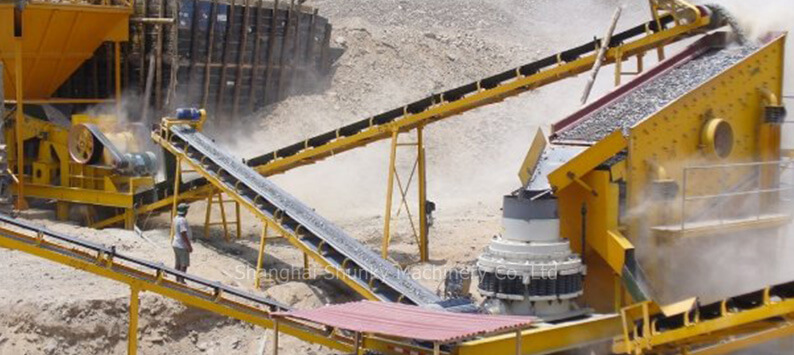

PY high efficiency cone crusher

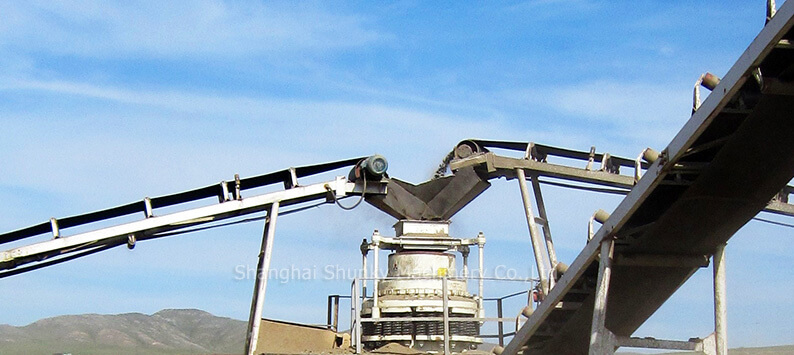

PY high efficiency cone crusher

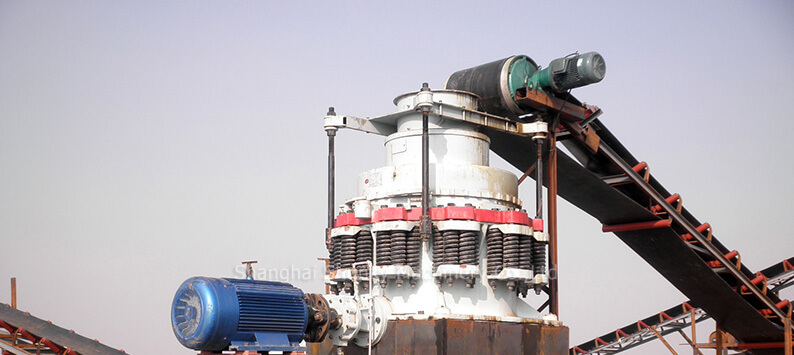

PY high efficiency cone crusher


02Product Brief Introduction

  • High efficiency and fine cubic shape.

    The movable cone operates conveniently, the crushing and discharging process works alternately and continuously; there is a parallel gap between the movable and fixed cone, which makes the final product fine cubic shape.

  • Diversity crushing chamber types.

    Type of the crushing chamber is decided by the application of the ores. Standard type is for PYB (secondary crush); middle type is for PYZ (tertiary crush); short-head type is for PYD (Ultra fine crush).

  • Special sealed form and reliable operation.

    PY series cone crusher adopts the dry oil or water as the sealed form, which makes the dust be out of the main unit. It ensures the clearance of the lubrication oil, which extend the lifespan of sliding bearing and thrust ball bearing. Therefore, the machine operates reliably.

PY high efficiency cone crusher

03Working Principle

PY high efficiency cone crusher

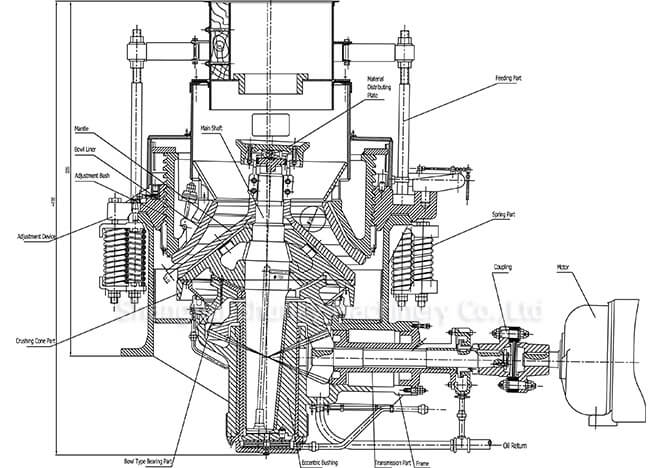

The working portions of spring cone crusher are cones, the fixed cone and movable cone. In the area of the movable cone moving close to the fixed cone, the ores will be squeezed, knocked and crooked, this area is the crushing chamber; when the movable cone deviate from the fixed cone, the crushed material will discharge, this is the discharging port. During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

04Technical Parameters

PY Series Spring Cone Crusher

Model

The diameter

of crushing head

bottom(mm)

Max. Feeding

size(mm)

Adjusting

range (mm)

Capacity

(t/h)

Power

(KW)

Speed of

Eccentric  Shaft

(r/min)

Weight

(t)

Overall

dimension

(mm)

PYB600 600 75 12-25 40 30 356 5 2234×1370×1675
PYZ600 600 35 3-13 5-23 30 356 5.3 2234×1370×1675
PYB900 900 115 15-50 50-90 55 333 11.2 2692×1640×2350
PYZ900 900 60 5-20 20-65 55 333 11.2 2692×1640×2350
PYD900 900 50 3-13 15-50 55 333 11.3 2692×1640×2350
PYB1200 1200 145 20-50 110-168 110 300 24.7 2790×1878×2844
PYZ1200 1200 100 8-25 42-135 110 300 25 2790×1878×2844
PYD1200 1200 50 3-15 18-105 110 300 25.3 2790×1878×2844
PYB1750 1750 215 25-50 280-480 160 245 50.3 3910×2894×3809
PYZ1750 1750 185 10-30 115-320 160 245 50.3 3910×2894×3809

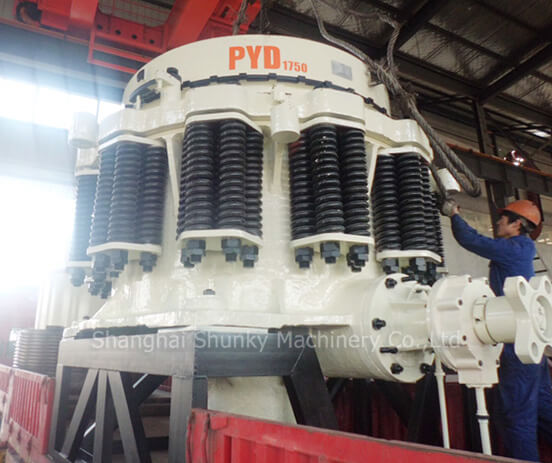

PYD1750 1750 85 5-13 75-230 160 245 50.2 3910×2894×3809
PYB2200 2200 300 30-60 490-750 260-280 220 80 4622×3302×4470
PYZ2200 2200 230 10-30 200-580 260-280 220 80 4622×3302×4470
PYD2200 2200 100 5-15 120-340 260-280 220 81.4 4622×3302×4470

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
