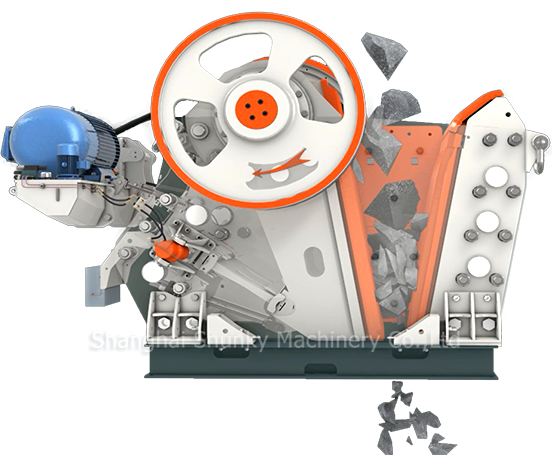

SKJ European Jaw Crusher

SKJ European jaw crusher is widely used in mining, building materials, silicate, metallurgy, road construction, chemical industry raw materials and other fields, especially suitable for crushing medium hardness materials, such as rock, ore, clinker of cement plant and so on

Applications: various mineral ores and rocks which anti-pressure do not exceed 280Mpa

100-800 T/HCapacity 75-220Power(kw)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

SKJ series European Jaw Crusher is generally suitable for primary and secondary crushing. Adopting the most advanced technology and craftsmanship in the world, SKJ series European Jaw Crusher is the top choice when crushing hard, strong-corrosive materials effectively with unique advantages on structural design, working performance, service life and maintenance. The latest SKJ series European jaw crusher researched and developed by Shanghai Shunky Machinery Co., ltd, which has become the most popular Jaw Crusher in the construction of highway, railway, airport runway, mining, building materials, metallurgy, chemical industries, etc.

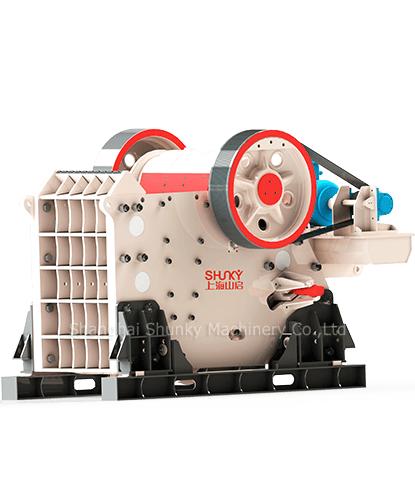

SKJ European Jaw Crusher
SKJ European Jaw Crusher
SKJ European Jaw Crusher


02Product Brief Introduction

  • More advanced movable jaw assembly lengthens the using life.

    The movable jaw assembly is composed of high-quality steel casting (weld assembly); large flywheel (pulley) adopts inblock casting process; the heavy eccentric shaft is processed of forging. All of the above processes make SKJ series European Jaw Crusher own overwhelming reliability.

  • Integral cast steel structure is adopted for bearing seat.

    The integral bearing seat can fit the frame completely, which not only enhances the radial strength but also reduces the maintenance cost.

  • Bearing with larger specification and higher bearing capacity is used.

    Compared with the other series of jaw crushers, SKJ series European Jaw Crusher adopts larger and more durable bearing. The larger carrying capacity and efficient labyrinth seal lengthen the life span of bearing dramatically.

  • Crusher chamber adopts “V” structure.

    Symmetric “V” chamber structure design, large angle of toggle plate, large stroke and optimal revolving speed bring larger feeding size, larger capacity, more evenly particle sizes and reduced abrasion of jaw plates.

  • Adjustment of the discharge part is more convenient.

    The discharge opening is adjusted by hydraulic and wedge block type, which makes discharge opening adjustment more convenient and makes maintenance more automatic. This system can reduce downtime obviously when the chamber needs to be cleared for the machine halt caused by power failure.

  • The effective stroke at the bottom of the crushing chamber is larger.

    The more reasonable of design for kinetic parameters of crushing chamber, the more effective stroke at the bottom. The SKJ series adopts more higher centrifugal force and steep inclined angle of toggle plate design. Larger stroke, appropriate speed and flywheel inertia,which ensure better crushing performance.

  • More rational design and more stable performance.

    The complete machine adopts modular design, which makes disassembly and transportation more convenient. The raised movable jaw plate can not only protect the movable jaw and bearing chamber but also ensure smooth discharging and realize optimal continuous crushing operations.

SKJ European Jaw Crusher

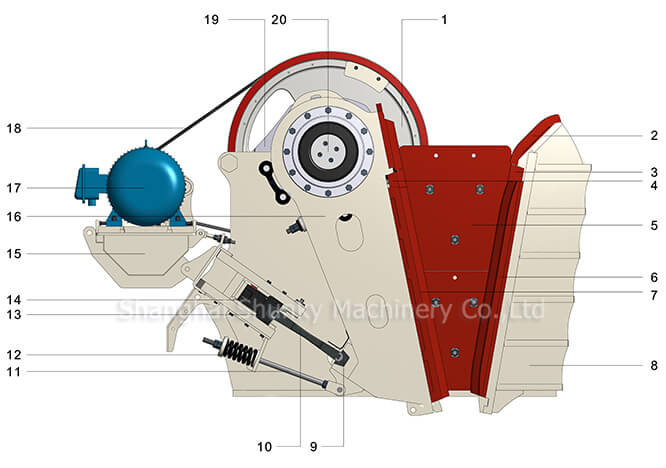

03Working Principle

SKJ European Jaw Crusher

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.

04Technical Parameters

SKJ European Jaw Crusher

型号

Model

进料口尺寸Feeding size(mm)

最大进料粒度Max. Feeding size(mm)

出料口调整范围Output size(mm)

处理能力Capacity

(t/h)

功率Power

(kw)

外形尺寸

Overal Dimension

(mm)

SKJ6310

630x1000

580

80-180

100-195

75

3763x2280x2644

SKJ8711

870x1100

720

85-220

130-360

110

4124x2480x3020

SKJ1113

1100x1300

960

120-260

260-580

160

4863x2762x3489

SKJ1216

1200x1600

1180

165-320

450-800

220

6700x4040x4465



05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
