GZD Series Vibrating Feeder

Widely used in metallurgy, coal mines, mineral processing, building materials, chemical, abrasive and other industries in crushing, screening combined equipment

Applications: All kinds of non-metallic ore (limestone, granite, basalt, cobblestone, Gobi material, etc.), metal mineral (gold, silver, copper, iron and lead), construction waste (waste concrete, brick, sidewalk brick) and other materials

20-750T/HCapacity 300-750mmMax.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

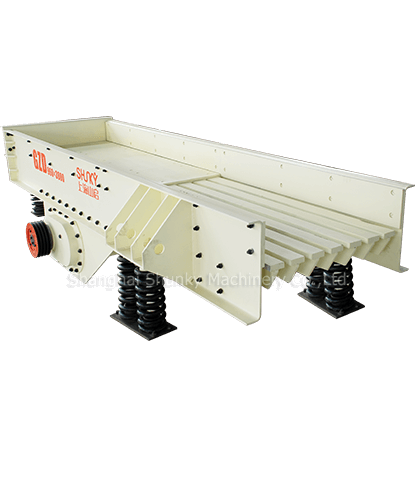

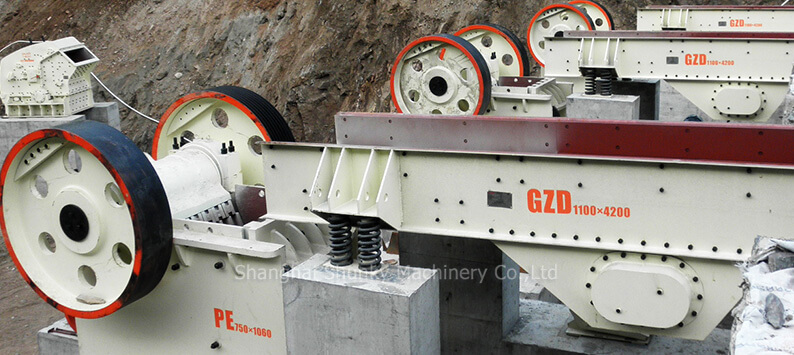

Vibrating feeder is also known as vibrating feeder. GZD series vibration feeder produced by our company is a new type of vibration feeder designed for conveying large materials evenly before crushing and screening medium coarse crusher. Vibration feeder adopts the structure characteristics of double eccentric shaft vibrator to ensure that the equipment can bear the impact of large material falling, and the feeding capacity is large. In the production process, the block and granular materials can be evenly, regularly and continuously given to the receiving device from the storage bin, so as to prevent the receiving device due to uneven feeding and the phenomenon of crash, prolong the service life of the equipment. The feeder can be divided into steel plate structure and grate structure. The feeder of steel plate structure is mostly used in sand and stone production line, and all the materials are uniformly sent into the crushing equipment; Grate structure of the feeder can be coarse screening of the material, so that the system is more economical and reasonable in the preparation, has been used as an essential equipment in crushing and screening.

GZD Series Vibrating Feeder
GZD Series Vibrating Feeder
GZD Series Vibrating Feeder


02Product Brief Introduction

  • Smooth vibration, reliable operation, long life service

  • Adjustable vibrating force, convenient and stable

  • Simple structure, reliable operation, easy to adjust, install, light weight, small size and simple maintenance

  • Using a closed structure to prevent dust pollution.

GZD Series Vibrating Feeder

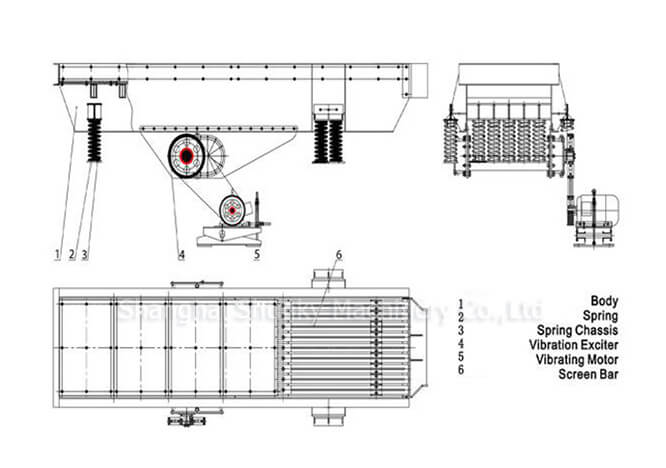

03Working Principle

GZD Series Vibrating Feeder

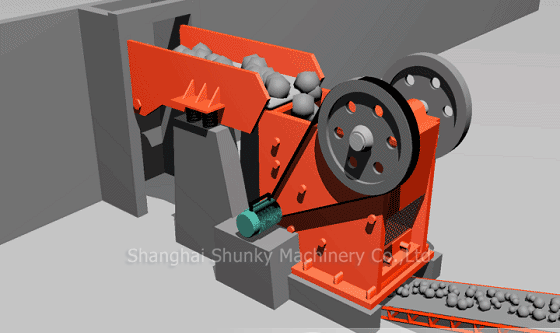

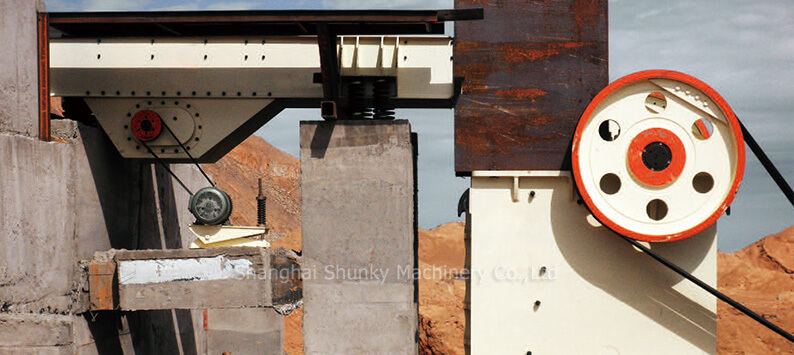

Vibrating feeder is used to transfer the block, particle material from storage silo to receiving device evenly, regularly and continuously in the production flow. Vibrating feeder is designed not only for feeding materials into crusher continuously and evenly, but also for screening the materials. It is widely used to match the crushing and sieving equipments in mining, chemical, grinding, building material, etc.

04Technical Parameters

GZD Series Vibrating Feeder

Model

Feed ChuteSize

(mm)

Max. feeding Size

(mm)

Handling Capacity

(t/h)

Power

(kw)

Dimension

(mm)

GZD-900×2000 900×2000 300 20-80 7.5 2060×1020×1025
GZD-900×3000 900×3000 350 30-120 11 3050×1020×1025
GZD-960×3800 960×3800 450 120-210 11-15 3850×1700×1130
GZD-1100×4200 1100×4200 500 200-430 15-18.5 4400×1850×1150
GZD-1100×4900 1100×4900 580 220-450 18.5-22 5200×2050×1700
GZD-1300×4200 1300×4200 600 280-500 22-30 4400×2050×1150
GZD-1300×4900 1300×4900 650 450-600 22-30 5200×2350×1750
GZD-1300×6000 1300×6000 650 320-550 30-37 6100×2050×1350
GZD-1500×6000 1500×6000 750 400-750 37-45 6100×2550×1860



05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
