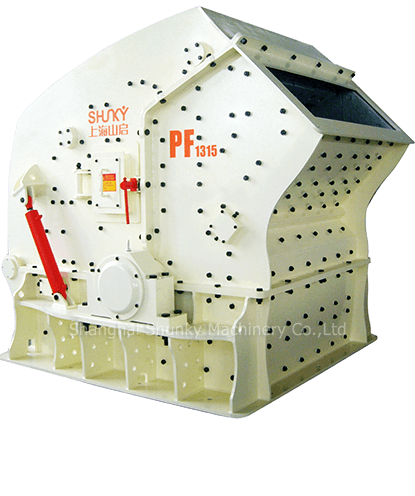

PF Impact Crusher

Hydro power, railways, highways, concrete mixing stations, ore crushing and other industries;

Applications: Granite, limestone, concrete, limestone, coal, calcium carbide, quartz, dolomite, iron sulfide

15-800 T/HCapacity: 250-700Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

Impact crusher is an important equipment for secondary crushing. On the basis of absorbing advanced technology from home and abroad, Shunky adopted the latest manufacturing craftsmanship as well as unique design and developed the latest PF series impact crusher with considering the specific mining conditions of domestic sand industry. The adoption of no-board connection and hydraulic valve not only reduces the customer’s operation cost, but also improves the production efficiency. Finished products are cubic without tension or cracks, and the shape is quite good. It can crush various coarse, medium and fine materials with maximum size less than 500mm and compressive strength no more than 350MPa. Besides, the crushing specification is various. Now it has been widely used in ore crushing, railway, highway, energy, cement, chemical, construction and other industries.

PF Impact Crusher
PF Impact Crusher
PF Impact Crusher


02Product Brief Introduction

  • It has a big feed opening and a high crushing chamber.

  • Materials of high hardness and big size can be crushed by it, and the product is of less powder.

  • The space between the impact plate and the blow bar can be adjusted conveniently. The particle size is controled effectively. The product is of good shape.

  • It has a compact structure and can resist strong forces. Its totor has a great rotational inertia.

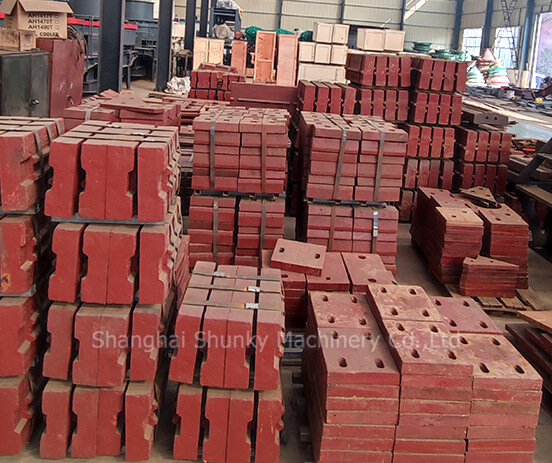

  • Chrome hammer is used and can bear impacts, abrading and can impact with a great force.

  • The no- board connection makes it easy to repaire and maintain.

  • It has more crushing functions and is of bigger productivity, less wearing, higher comprehensive benefits.

PF Impact Crusher

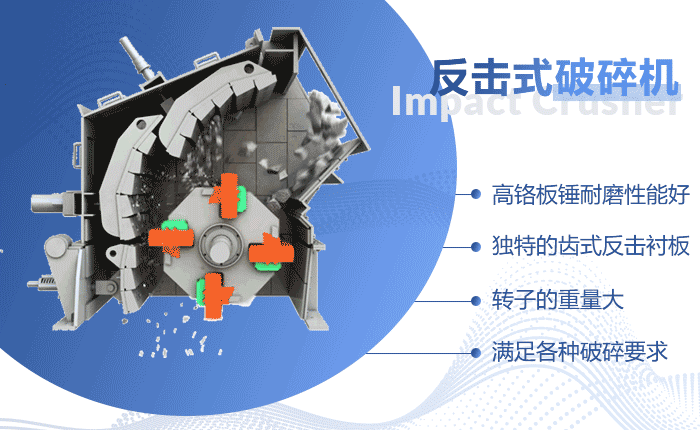

03Working Principle

PF Impact Crusher

Impact crusher can be used to crush various kinds of coarse, medium and fine materials(granite, limestone, concrete etc.). For the board hammer is easily worn, its applications on the hard materials are limited. It is commonly used to coarse, medium and fine crush brittle materials with medium hard and blow compressive strength such as limestone, coal, calcium carbide, quartz, dolomite, iron sulphide ore, gypsum and chemical materials. This equipment is widely used in ore crushing, construction of railway, highway, energy, cement, chemical, building and other industries. The size for the layout is adjustable. It can produce materials which can meet many requirements.

04Technical Parameters

PF Impact Crusher

Model

Rotor Size

(mm/inch)

Feeding Opening

(mm/inch)

Max.Feeding

Size(mm/inch)

Capacity

(t/h)

Motor Power

(kw)

Weight

(T)

Overall

Dimensions

(mm)

PF-1007

Φ1000×700

(Φ40"×28")

400×730

(16"×29")

250(10")

15-60

37-55

9.8

2440×1580×2672

PF-1010

Φ1035×1050

(Φ41"×42")

400×1080

(16"×43")

300(12")

50-90

55-75

12.8

2650×2150×2900

PF-1210

Φ1250×1050

(Φ50"×42")

400×1080

(16"×43")

300(12")

70-130

110-132

17

2800×2150×2900

PF-1214

Φ1250×1400

(Φ50"×56")

400×1430

(16"×57")

300(12")

90-180

132-160

20.8

2850×2400×2900

PF-1315

Φ1320×1500

(Φ52"×60")

860×1520

(34"×60")

350(14")

120-250

180-220

24.8

3100×2800×3160

PF-1318

Φ1320×1500

(Φ52"×72")

880×2000

(35"×80")

350(14")

150-260

220-260

26.8

3100×3210×2613

PF-1320

Φ1320×2000

(Φ52"×80")

900×2030

(36"×81")

500(20")

160-350

260-300

34

3320×3218×2613

PF-1520

Φ1512×2000

(Φ60"×80")

1315×2040

(52"×81")

700(28")

350-450

400-450

44

4138×3422×3649

PF-1620

Φ1612×2000

(Φ64"×80")

1315×2040

(52"×81")

700(28")

400-600

500

47

4236×3572×3735

PF-1820

Φ1800×2000

(Φ72"×80")

1620×2040

(64"×81")

700(28")

550-800

630-710

66

4471×3250×4008

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

PXZ Gyratory Crusher

Capacity:310-1720t/h

Learn More

JCE European Jaw Crusher

Capacity T/H:12-635

Learn More

PE Jaw Crusher

Capacity::1-1300 T/H

Learn More

Would you like to know the equipment details and quotation?

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

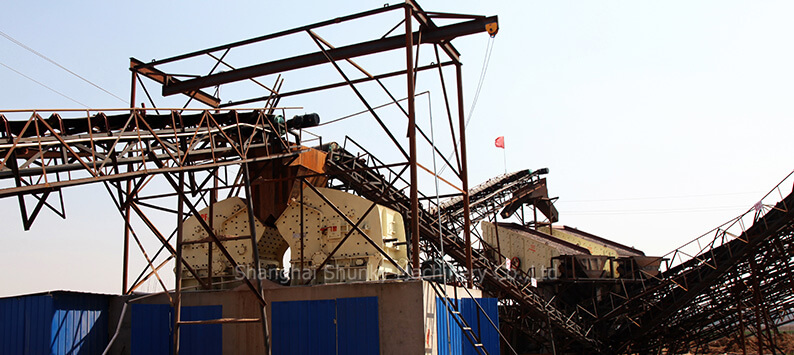

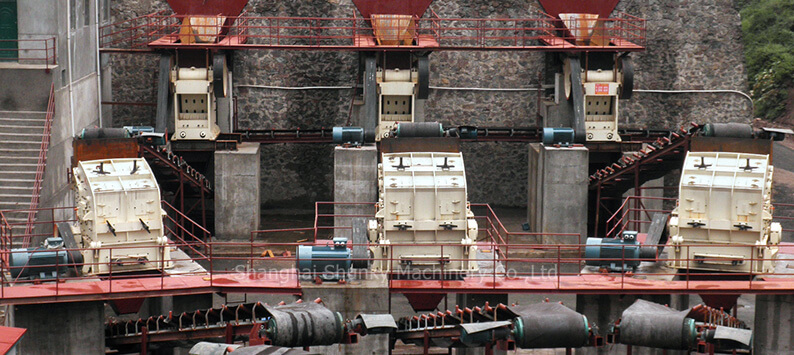

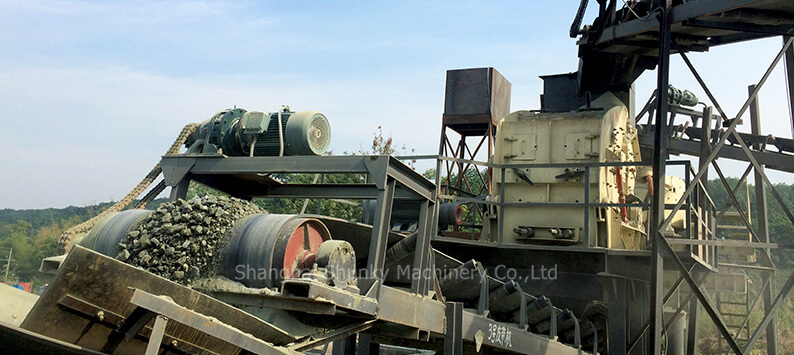

Direct attack on the customer's production site More scene+
