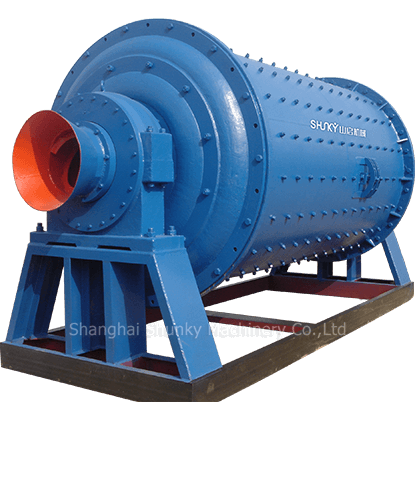

Ball Mill

Ball mill is widely used in cement, silicate, new construction material, refractory material, chemical fertilizer, ferrous metal, non-ferrous metal and ceramics.

Applications: Cement, silicate products, new building materials, refractories, chemical fertilizer, beneficiation of black and non-ferrous metals and production of glass ceramics.

0.65~50t/hCapacity ≤25mmFeed particle size

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

Ball mill is an efficient grinding equipment and is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ect. It can grind kinds of ores and stones with the dry way and the wet way of grinding.

Ball Mill
Ball Mill
Ball Mill


02Product Brief Introduction

  • Simple and safe operation.

  • Reasonable product size

  • Low energy consumption.

    Energy saving, emission reduction and low energy consumption.

  • Low investment.

    Low investment brings high returns to buyers.

Ball Mill

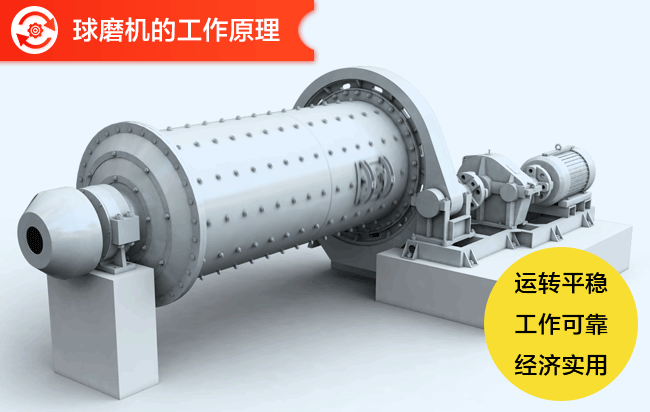

03Working Principle

Ball Mill

The bulk materials are crushed to the required particle size by the crusher and sent to the storage hopper by the elevator. The materials are quantitatively and continuously sent to the main machine for grinding by the vibrating feeder. The milled powder rises with the air flow of the centrifugal fan and enters the powder concentrator for classification. The powder meeting the fineness standard flows through the pipeline and enters the cyclone powder collector for separation and collection, The finished powder is discharged through the discharge valve. The air flow enters the centrifugal induced draft fan from the return air pipe at the upper end of the cyclone powder collector. The whole air flow system is closed and circulates under positive and negative pressure. An exhaust pipe is added at the outlet of the centrifugal induced draft fan to discharge the excess gas into the dust collector for filtration, and then discharge the clean gas to realize environmental protection production.

04Technical Parameters

Ball Mill

Model

Speed Of

Bucket(rpm)

Max Weight Of

Ball(t)

Size Of Opening

(mm)

Size Of

Discharge(mm)

Capacity

(t/h)

Power Of

Motor(kw)

Weight

(t)

Φ900X1800 42 1.4 ≤20 0.075-0.89 0.65-2 18.5 3.6
Φ900X3000 41 2.5 ≤20 0.075-0.89 1.1-3.5 22 4.5
Φ1200X2400 36 3.5 ≤25 0.075-0.6 1.5-4.8 30 11.5
Φ1200X3000 32 5 ≤25 0.074-0.4 1.6-5 45 12.8
Φ1200X4500 32 5.5 ≤25 0.074-0.4 1.6-5.8 55 13.8
Φ1500X3000 31 6.8 ≤25 0.074-0.4 2-7 75 17
Φ1500X4500 27 10.5 ≤25 0.074-0.4 3.5-8 110 21
Φ1500X5700 27 15 ≤25 0.074-0.4 3.5-10 132 24.7
Φ1830X3000 26

13

≤25 0.074-0.4 4-12 160 28
Φ1830X6400 26 23 ≤25 0.074-0.4 6.5-15 210 34
Φ1830X7000 26 25 ≤25 0.074-0.4 6.5-22 210 36
Φ2200X5500 21 30 ≤25 0.074-0.4 10-20 245 48.5
Φ2200X7500 21 33 ≤25 0.074-0.4 16-50 380 56

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
