PFC Impact Crusher

Hydro power, railways, highways, concrete mixing stations, ore crushing and other industries;

Applications: Hydro power, railways, highways, concrete mixing stations, ore crushing and other industries;

90-480 T/HCapacity 400-700Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

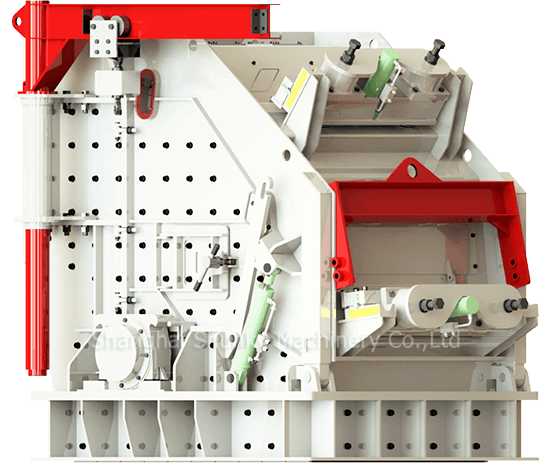

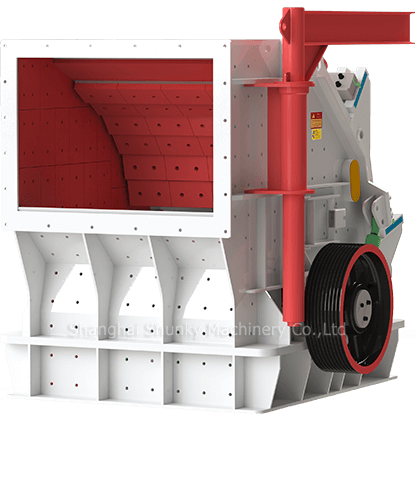

PFC European impact crusher is manufactured according to advanced European technology, combined with working condition of sand and gravel industry. Abrasion resistance material and perfect crushing cavity bring superior capacity to the PFC crusher .High-class forging for main shaft and no-board design, advanced international taper-lock connection makes it reliable to operate and easy to maintain.This kind of crusher can crush materials with max feed size less than 700mm and crushing strength less than 350 Mp. It is widely used for highway, water conservancy, electricity and construction.

PFC Impact Crusher
PFC Impact Crusher
PFC Impact Crusher


02Product Brief Introduction

  • The hammer adopts high wear resistant material, service life is longer.

    The hammer adopts high wear resistant material, service life is longer, and the material after strict heat treatment, which has good mechanical impact resistance and thermal impact performance.

  • Optimized structure makes bigger crushing cavity and opening size.

    Optimized structure makes bigger crushing cavity and opening size, reasonable primary crushing.

  • Special processing for rotor, substantial heavy rotor brings higher rotary inertia.

  • No-board connection; easy to be checked; more economic and reliable.

  • Complete crushing function, high productivity.

    Complete crushing function, high productivity, less wear, good comprehensive effectiveness.

  • Standardized design for impact plate and perfect interchangeability decreases stock.

PFC Impact Crusher

03Working Principle

PFC Impact Crusher

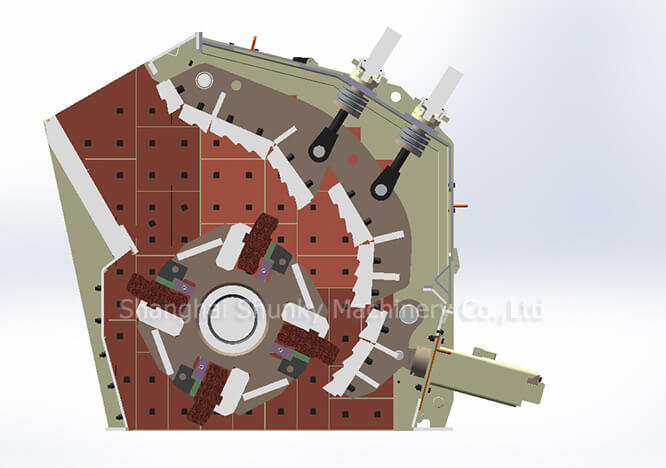

When Impact crusher works, under the driving force of motor, the rotor rolls at a high speed with the blow bar on it hitting the material into pieces, and then the material will be thrown toward the impact device and then to the blow, so it will be crushed again. This process repeats until materials are crushed to the requested size. The product size and output can be controlled by adjusting the clearance between impact plate and blow bar. This impact crusher is designed with spring safety device,when non-crushing material enter into crushing chamber, the impact rack will recede and then the non-crushing is discharged.

04Technical Parameters

PFC Impact Crusher

Model

Specification

(mm/inch)

Feeding Opening

( mm)

Ma×.Feeding Size

(mm)

Capacity

(t/h)

Power

(kw)

Weight

(t)

Dimension

(mm)

PFC1210 Φ1150×960(Φ46"×38") 1100×1030(44"×41") 400 90-160 90-110 18 2400×1870×2550
PFC1214 Φ1150×1400(Φ46"×56") 1100×1430(44"×57") 500 130-200 132-160 22 2400×2310×2550
PFC1315 Φ1300×1500(Φ52"×60") 1200×1530(48"×61") 600 180-320 160-200 29 2700×2570×2800
PFC1318 Φ1300×1800(Φ46"×72") 1200×1830(48"×73") 700 240-400 200-250 34 2700×2870×2800
PFC1415 Φ1400×1500(Φ56"×60") 1300×1530(52"×61") 700 300-480 200-250 38 2900×2700×3000

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
