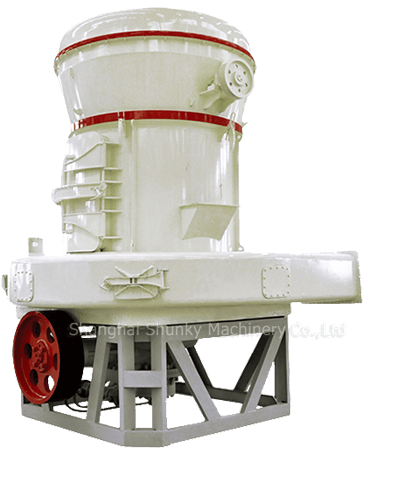

MTW Series European Powder Mill

Chemical industry, mining and other mineral materials grinding processing.

Applications: Grindable calcite, chalk, calcium carbonate, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite...

3-50T/HCapacity ≤30-50Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

SKJ series European Jaw Crusher is generally suitable for primary and secondary crushing. Adopting the most advanced technology and craftsmanship in the world, SKJ series European Jaw Crusher is the top choice when crushing hard, strong-corrosive materials effectively with unique advantages on structural design, working performance, service life and maintenance. The latest SKJ series European jaw crusher researched and developed by Shanghai Shunky Machinery Co., ltd, which has become the most popular Jaw Crusher in the construction of highway, railway, airport runway, mining, building materials, metallurgy, chemical industries, etc.

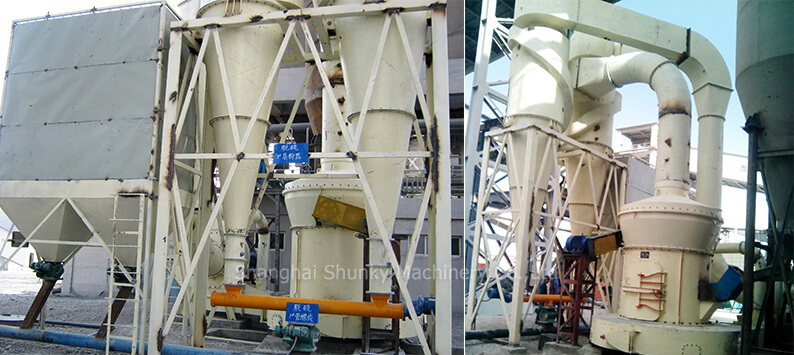

MTW Series European Powder Mill

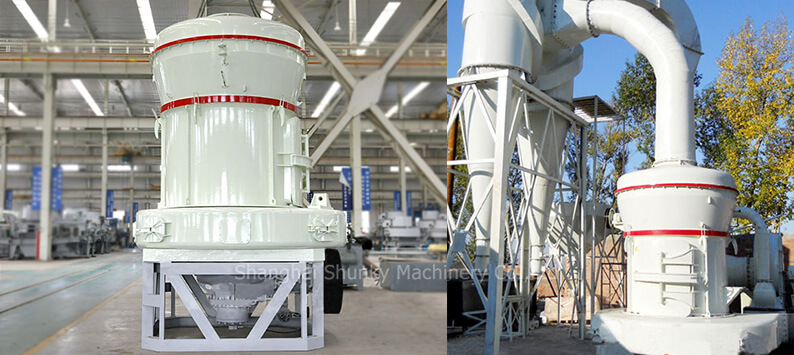

MTW Series European Powder Mill

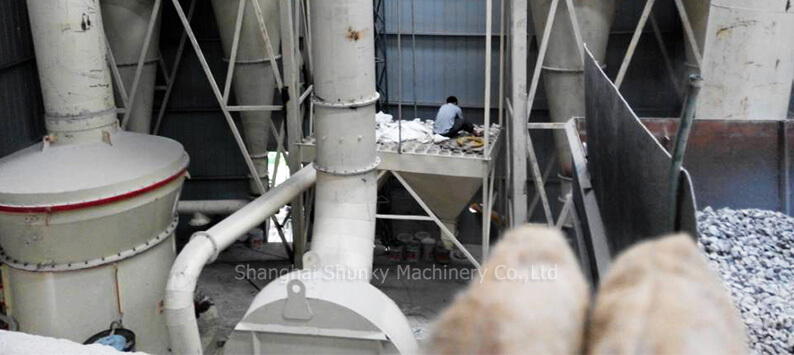

MTW Series European Powder Mill


02Product Brief Introduction

  • Low energy consumption, High efficiency.

    MTW series grinding mill adopts the bevel gear overall drive: compact structure, without the reducer, easy to be installed and improve the effiency.

  • Advanced inner automatic thin-oil lubricating system and circulating water cooling system.

    MTW series grinding mill adopts inner L.O.pumps, so the main shaft bearing and bevel gear can be lubricated without an additional lubrication system. The circulating water cooling system can make the main shaft and bearing temperature be constant, which extend the equipment lifespan.

  • Arc air channel, overall cambered design,no resistance snail shell.

    MTW series European grinding mill adopt the arc air channel,there is no airflow corner in the inner outlet, which is very good for the grinded material to spread around and avoid grinding material jammed; The inner surface of checking door stays with the inner surface of snail shell on the same plane, so the eddy air flow is avoided efficiently.

  • Grinding roller and grinding ring adopt the special structure design, cambered shovel with renewable edge, which improves the grinding efficiency and reduces the cost.

    MTW series European grinding mill adopts high wearable limit alloy, its life will be longer. You only need change the edge, not the whole shovel, so the steel material is saved. Additionally,the cambered shovel can scoop up the grinded material in the same vertical plane, that makes the rollers and ring worn equally. At the same, the grinding efficiency is higher and capacity is higher.

  • Final product size is adjustable and controllable.

    Analyzer speed is controlled by frequency conversion, speed is more accurate, fine material separation effect is better; Separated cyclone: There is a separated structure between inner piping and mixed air and powder. The efficiency and precision of classifying is prompted highly.

  • Environmental protection and low noise.

    MTW series grinding mill is equipped with the advanced dust collector, the concentration of discharged dust is lower than the national environmental protection rule. The air system is closed loop and flows circularly in a positive-negative pressure state.The special air circulation system reduces the outside exhaust air rate, that is good for the environmental protection.

MTW Series European Powder Mill

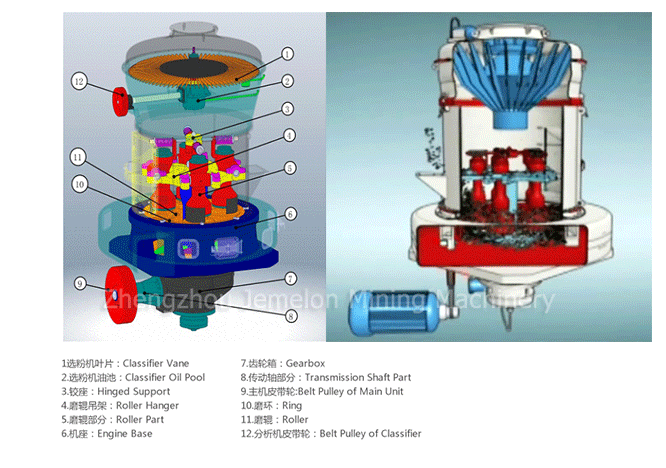

03Working Principle

MTW Series European Powder Mill

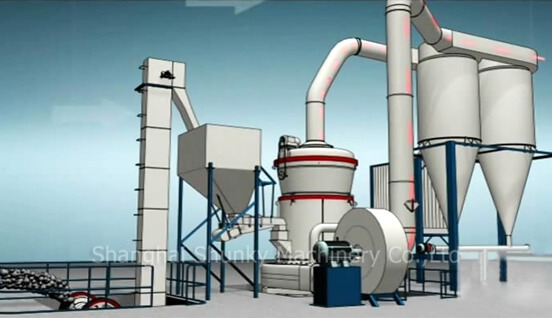

The bulk materials are crushed to the required particle size by the crusher and sent to the storage hopper by the elevator. The materials are quantitatively and continuously sent to the main machine for grinding by the vibrating feeder. The milled powder rises with the air flow of the centrifugal fan and enters the powder concentrator for classification. The powder meeting the fineness standard flows through the pipeline and enters the cyclone powder collector for separation and collection, The finished powder is discharged through the discharge valve. The air flow enters the centrifugal induced draft fan from the return air pipe at the upper end of the cyclone powder collector. The whole air flow system is closed and circulates under positive and negative pressure. An exhaust pipe is added at the outlet of the centrifugal induced draft fan to discharge the excess gas into the dust collector for filtration, and then discharge the clean gas to realize environmental protection production.

04Technical Parameters

MTW Series European Powder Mill

型号Model

MTW110T

MTW138T

MTW175T

MTW215T

磨环内径Inner Diameter of Ring(mm

Φ1100

Φ1380

Φ1750

Φ2150

主机转速

Main Unit Speed(r.p.m.)

120

96

75

65

入料粒度Feeding Size(mm)

≤30

≤35

≤40

≤50

成品粒度Final Size(mm)

1.6-0.045

最细可达fineness can reach to 0.038

1.6-0.045最细可达fineness can reach to 0.038

1.6-0.045最细可达fineness can reach to 0.038

1.6-0.055最细可达fineness can reach to 0.045

处理能力Capacity(t/h)

3~10

6~20

10~35

20~50

电机功率Motor Power(kw)

主机

Main Engine

55-75

90-110

160-200

280-315



选粉机Classifier

7.5-11

18.5-30

30-45

75-90



离心风机

Centrifugal Induced Draft Fan

55-75

90-132

185-200

280-315

外形尺寸Dimension(L×W×H)(mm)

8425×7933×8642

10920×9470×10227

12195×9555×9916

13922×9810×13226

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
