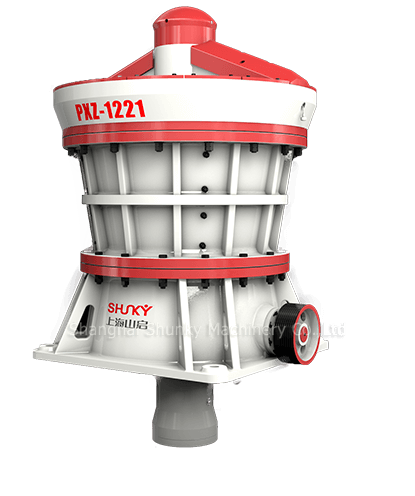

PXZ Gyratory Crusher

It is used in metallurgy, building materials, chemical industry, hydropower and other industries

Applications: Crushing all kinds of materials with medium or above hardness

310-1720t/hCapacity <580mmFeed particle size

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

The PXZ Gyratory  Crusher produced by our company is widely used in metallurgy, building materials, chemical industry, hydropower and other industries. It breaks all kinds of materials with medium or above hardness. It is one of the main equipment for coarse crushing ore or rock. It has the characteristics of large crushing ratio, high production capacity and uniform product particle size. It is suitable for large open-pit mines and beneficiation.

02Product Brief Introduction

  • High safety factor.

    The frame body is made of high-strength cast steel with high safety factor, which can ensure trouble free operation even under very bad crushing conditions.

  • High reliability.

    The heavy-duty spindle is made of high-strength alloy steel, with high strength.

  • Realize overload protection.

    Hydraulic support structure can realize overload protection..

  • The size of the ore discharge port can be adjusted.

    The spindle position indicator can realize the real-time monitoring of the spindle, display the spindle position, and adjust the size of the ore discharge port through the hydraulic system.

  • Effective sealing parts.

    Air sealing system can effectively seal eccentric sleeve, large and small gears and other parts.

  • Automatic grease lubrication parts.

    The electric dry oil lubrication pump is used to automatically lubricate the grease lubricated parts such as beam bearings at regular intervals.

  • Realize automatic control.

    The centralized lubrication system can lubricate the eccentric sleeve, large and small gears and transmission bearings at the same time.

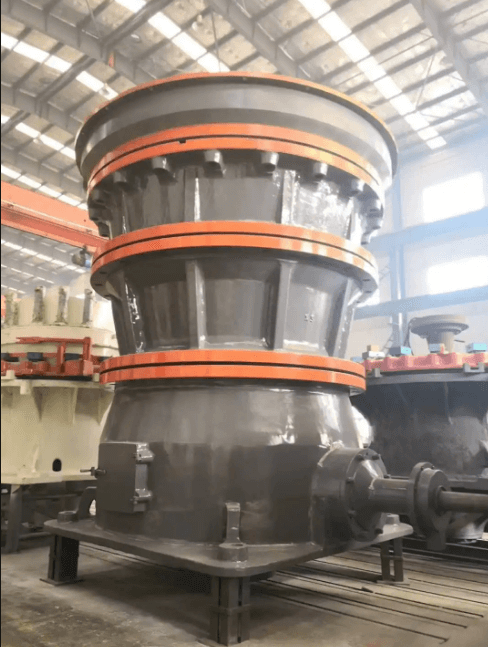

PXZ cycle crusher

03Working Principle

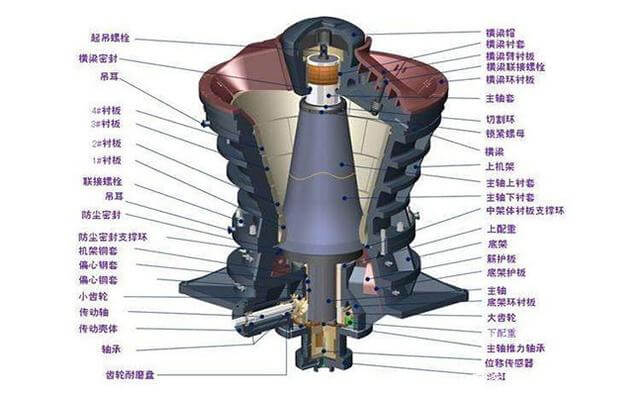

PXZ cycle crusher

The rotary crusher is composed of transmission, base, eccentric sleeve, crushing cone, middle frame, cross beam, prime mover, oil cylinder, hydraulic pressure, pulley, electrical and dry and thin oil lubrication. The motor drives the eccentric sleeve to rotate through the belt pulley and bevel gear. When the eccentric sleeve rotates, it drives the crushing cone to swing around the center of the crusher. Thus, the crushing conical surface sometimes approaches and sometimes leaves the fixed conical surface, so that the materials fed into the crushing cavity are continuously crushed by extrusion and bending. The crushed material is discharged from the bottom of the crushing chamber by its own weight.

04Technical Parameters

PXZ Gyratory Crusher

型号规格 给矿口尺寸 (mm) 排矿口尺寸(mm) 大给料尺寸(mm) 排矿口调整范围 产量(t/h) 破碎圆锥底部直径(mm) 主电机 机器总重(T)
功率(KW)
PXZ0710 700 100 580 100-130 310-400 1400 130-180 91
PXZ0909 900 90 750 90-120 380-510 1650 210-280 141
PXZ0913 130 130-160 625-770
PXZ0917 170 170-190 815-910
PXZ1216 1200 160 1000 160-190 1250-1480 2000 310-355 228
PXZ1221 210 210-230 1560-1720

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
