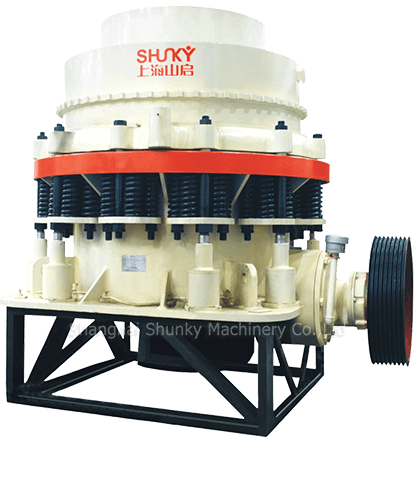

Symons Cone Crusher

widely used in metallurgy, building materials, roads, railway, chemical industries and silicate industry, and suitable all kinds of ores and rocks with medium and above hardness.

Applications: Basalt, granite, river stone and all kinds of ores and rocks with medium and above hardness.

27-1270 T/HCapacity 75-360Power(kw)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

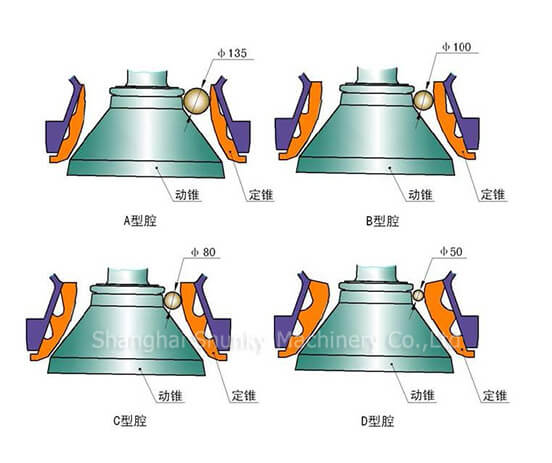

CS series cone crusher has the characteristics of large crushing force, high efficiency, high handling capacity, low operating cost and convenient adjustment. The structure design is reasonable, the particle size of broken product is uniform, and the circulation load is reduced. Our company produces this series of cone broken each model has a variety of cavity, users can according to the material type, finished product particle size, particle size distribution requirements for the most suitable cavity selection, so as to achieve the best production results.

CS high efficiency cone crusher
CS high efficiency cone crusher
CS high efficiency cone crusher


02Product Brief Introduction

  • High strength alloy steel main shaft,reasonable design.

    Main shaft Forged from hardened and tempered chrome molybdenum steel Particularly large diameters to suit heavy-duty application.

  • High strength, high precision gear, running smoothly.

    Pinion gear and bull gears with high strength and high precision are adopted to ensure the reliable operation of equipment.

  • Hydraulic cavity cleaning ,convenient and fast.

    Hydraulic cleaning device can remove the foreign body conveniently and quickly, if non-crushable object is delivered into the crusher.

  • Simple structure , reliable and easy to maintain.

    Drive shaft assembly is supported by the bronze shaft sleeve, and the entire assembly can be dismounted for convenience of maintenance.

  • High quality spring and overload protection。

    High quality spring and overload protection,Adoption of grease sealing increases the service life.

CS high efficiency cone crusher

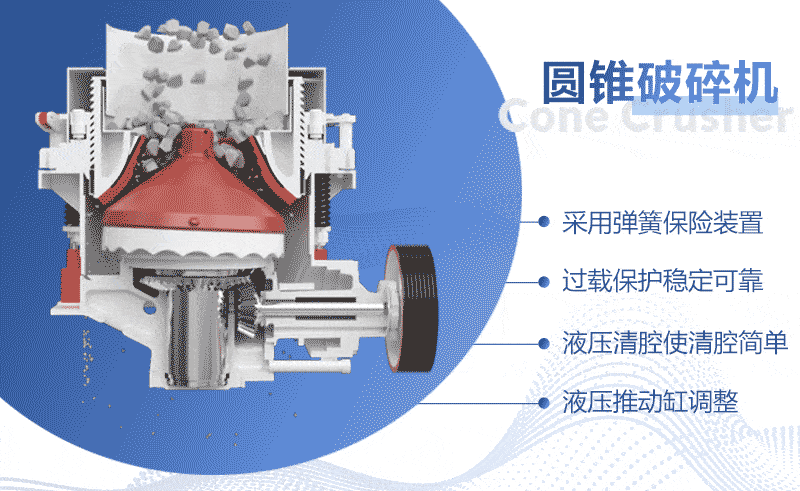

03Working Principle

CS high efficiency cone crusher

CS series cone crusher are designed to crush high or medium hardness material, such as iron ore, copper ore, limestone, quartz, granite, ect.and normally used as second or third stage crusher in metallurgy, road construction, chemical engineering and so on. There are mainly standard type and short-head type according to different discharge size. This series offer the highest crushing efficiency and final product quality with the lowest cost so that they are well received by the customers.

04Technical Parameters

Symons Cone Crusher

规格Type

型号

Model

腔型

Type of Chamber

破碎锥大端直径Diameter of Large End of Crushing Cone

(mm)

排料口调整范围 Discharge Opening

(mm)

最大给料粒度Max. Feeding Size(mm)

处理能力Capacity

(TPH)

主机功率 Power

(KW)

外形尺寸

Dimension

(L×H×W)

(mm)

CS75(3’)

CSC75

C

900

13~38

175

59~163

75

2656×1636×2241



CSB75

M



9~22

102

45~91







CSD75

F



3~13

41

27~90





CS110(3’1/2’)

CSC110

C

1100

13~38

160

70~215

110

2290×1530×2036



CSB110

M



10~25

115

55~135







CSD110

F



6~19

80

47~90





 CS130

(4’)

CSC130

C

1200

13~38

180

105~220

132

2630×1760×2212



CSB130

M



10~25

130

72~170







CSD130

F



10~19

90

70~125





CS160

(4’1/4)

CSC160

C

1300

16~51

200

135~350

160

2860×2070×2623



CSB160

M



13~25

150

105~180







CSD160

F



10~19

102

80~140





CS200

(5’)

CSC200

C

1400

19~51

215

200~440

200

2830×2200×2783



CSB200

M



16~25

160

160-230







CSD200

F



13~22

115

150~240





CS220

(5’1/5’)

CSC220

C

1500

19~64

235

230~570

220

3360×2650×3050



CSB220

M



19~38

175

215~330







CSD220

F



13~25

130

136~281





CS240

(5’)

CSC240

C

1675

22~64

267

330~725

250

3580×2860×3680



CSB240

M



16~25

203

240~330







CSD240

F



10~19

140

190~300





CS360

(7’)

CSC360

C

2130

31~89

334

789~1270

355

5110×4270×4350



CSB360

M



25~76

303

608~998







CSD360

F



10~29

150

352~617





05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
