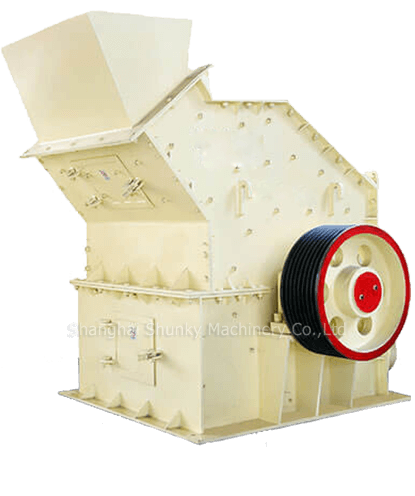

PC Fine Crusher

Widely used in industrial and mining enterprises such as metallurgy, mining, chemical industry, cement, coal gangue, construction, sand making, refractory and ceramics.

Applications: Engage in medium crushing and fine crushing of materials. It is mainly suitable for crushing various soft and hard ores with compressive strength not higher than 320MPa (MPA).

15-100 T/HCapacity 30-50Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

PC series crusher is a high-efficiency medium and fine crusher produced by our company on the basis of combining the advantages of hammer crusher and impact crusher. It is mainly used to produce fine sand and coarse powder. The proportion of 0-3mm material in its final product can be as high as 90%, which makes up for the deficiency of crusher and mills in the production of fine sand and coarse powder. It is ideally suitable for primary, secondary and fine crushing.The machine has the advantages of stable and reliable operation, simplified process, simple structure, convenient maintenance, long service life of hammer head and remarkable advantages in the field of medium and soft material crushing. At present, the fine crusher has been widely used in beneficiation, refractory, cement, quartz sand, construction, ceramics and other industries.

02Product Brief Introduction

  • High production capacity and high crushing ratio;

  • Low power consumption and uniform product particle size;

  • The mechanical structure is simple, compact and light;

  • It has the advantages of low investment cost and convenient management.

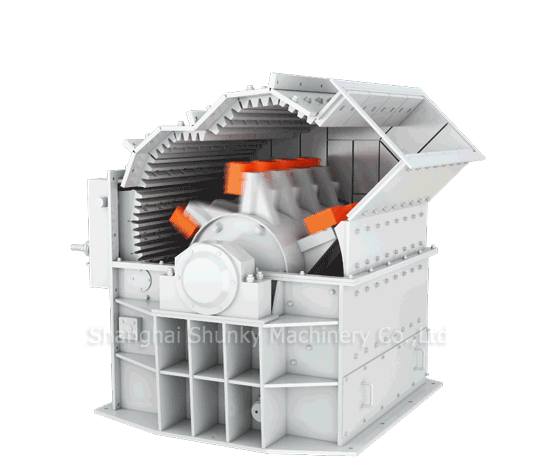

03Working Principle

PC Fine Crusher

The optimized crushing chamber improves fine crushing effects and enhances the unitarily of spare parts. The hammer is designed with tungsten and titanium alloy integrated structure and other special wear-resistant materials which greatly lengthen the service life of hammerhead. It is a high-tech product for which we have full intellectual property rights. DSMAC owns the technology, in terms of clinker crushing in particular, which is way ahead of our fellow competitors.

04Technical Parameters

PC Fine Crusher

Model

PC4008-75

PC4012-90

PC4015-132

Diameter Of Rotor

750

900

1150

Length Of Rotor

800

1200

1500

Speed Of Rotor

800-1000

800-1000

550-800

Feeding Opening

320×930

400×1200

500×1500

Max feeding Size

<30

<40

<50

Discharge Size

0-3

0-3

0-8

Capacity (t/h)

15-30

30-60

60-100

Power (KW)

75

90

132

Dimension(L×W×H)(mm)

2130×1665×1610

2840×2100×2020

3720×2650×2540

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
