PCZ Heavy Hammer Crusher

Heavy hammer crusher is widely used for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The large capacity makes heavy hammer crusher becomes the preferred equipment in large stone crushing industry.

Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

100-700t/hCapacity 55-700KWMotor Power

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

PCZ series heavy hammer crusher, also known as boulder crusher, is a new hammer crusher developed on the basis of PC series crusher, according to the feedback information of users and the development trend of crushing industry, combined with the experimental data of our company. Therefore, compared with the ordinary hammer crusher, the heavy hammer crusher adopts the alloy composite hammer head, which has the remarkable characteristics of high wear resistance, large moment of inertia and high rotor kinetic energy. It overcomes the shortcomings of other Hammer Crushers, such as fast wear of hammer head and easy breaking of hammer pin. It has the characteristics of large feeding particle size, high crushing ratio and low maintenance cost. The current output of heavy hammer crusher sometimes ranges from 50 tons to 500 tons, which makes this series of heavy hammer crushers become the equipment of large stone crusher industry.

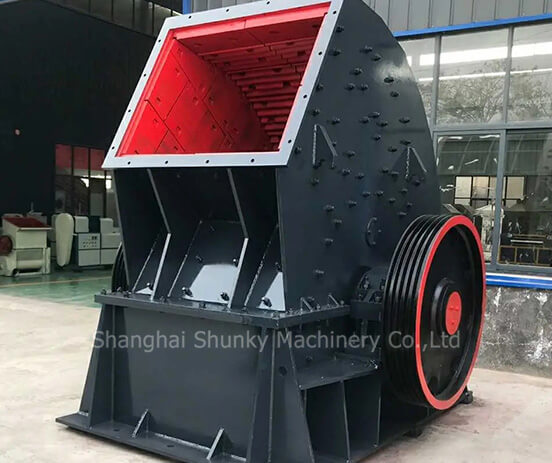

PCZ heavy hammer crusher

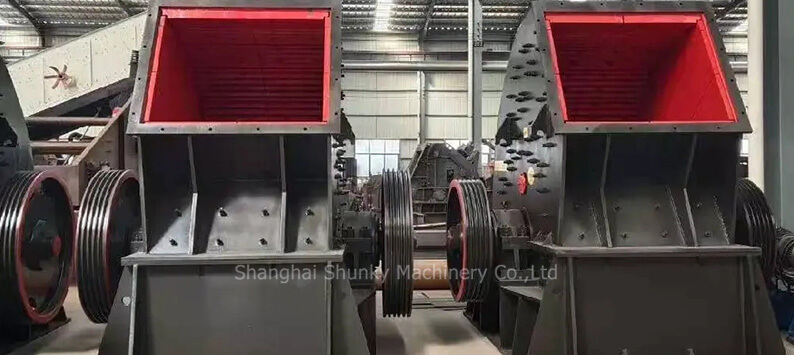

PCZ heavy hammer crusher

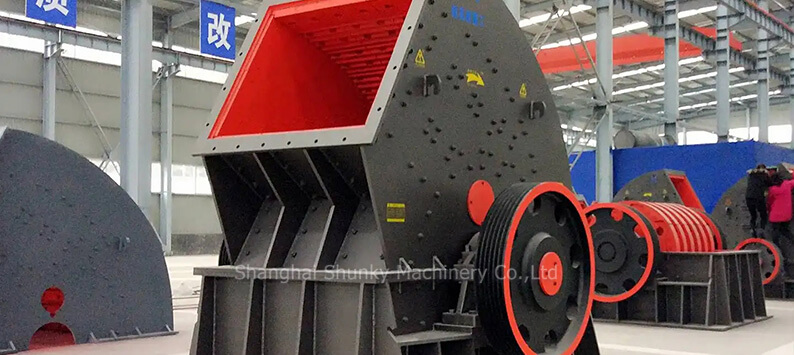

PCZ heavy hammer crusher


02Product Brief Introduction

  • Output and energy consumption.

  • Less wear and cost saving.

  • Less investment and faster return.

  • Large feed particle size and high output.

  • No grate and no blockage.

  • Simple structure and convenient maintenance.

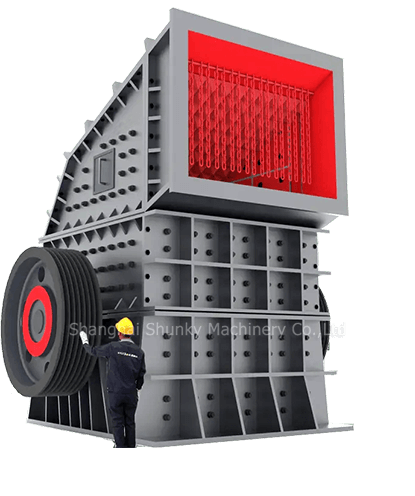

PCZ heavy hammer crusher

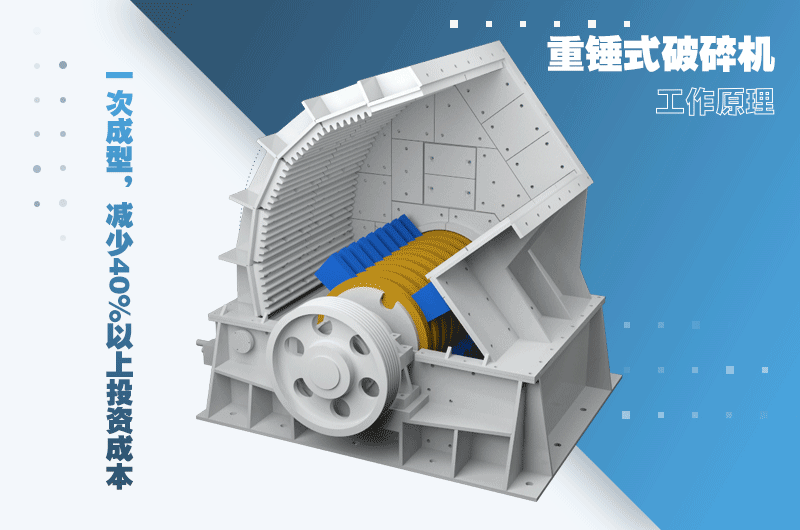

03Working Principle

PCZ heavy hammer crusher

Motor drives the rotor quickly in the crushing cavity. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them. Without the grate design, wet and much soil raw material will not clogged. Finally, the finished porduct through the outlet smoothly.

04Technical Parameters

PCZ Heavy Hammer Crusher

Model Feeding Size
(W*L)(mm)
Rotor Size
(Dia.xL)(mm)
Input Size(mm) Power(KW) Capacity(t/h) Overall Dimension
(mm)
PCZ-0808 800*5000 850*790 ≤450 55-75 50-90 1760*1700*1540
PCZ-1308 850*800 1310*790 ≤600 55*2 100-160 2818*2100*2390
PCZ-1510 1000*850 1500*950 ≤750 132*2 160-210 3260*2370*2750
PCZ-1512 1210*900 1500*1160 ≤750 160*2 220-350 3260*2580*2750
PCZ-1615 1500X1200 1650*1452 ≤1000 200*2 350-500 3456*2915*3185
PCZ-2015 1500X1400 2000*1500 ≤1200 315*2 500-800 3880*2990*3560

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
