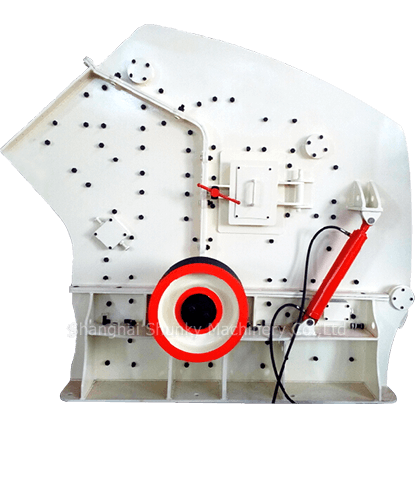

HPF Impact Crusher

Hydro power, railways, highways, concrete mixing stations, ore crushing and other industries;

Applications: Granite, limestone, concrete, limestone, coal, calcium carbide, quartz, dolomite, iron sulfide

70-500 T/HCapacity 300-700Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

HPF series hydraulic impact crusher is designed with international technology and world-class manufacturing process based on PF impact crusher. The HPF hydraulic impact crusher applies to crush hard material and ore. The maintenance and replacement of vulnerable part is easier because of the hydraulic adjustment for opening size. Three –curtain cavity design makes it perform well in the fine crushing and superfine fine crushing operation.

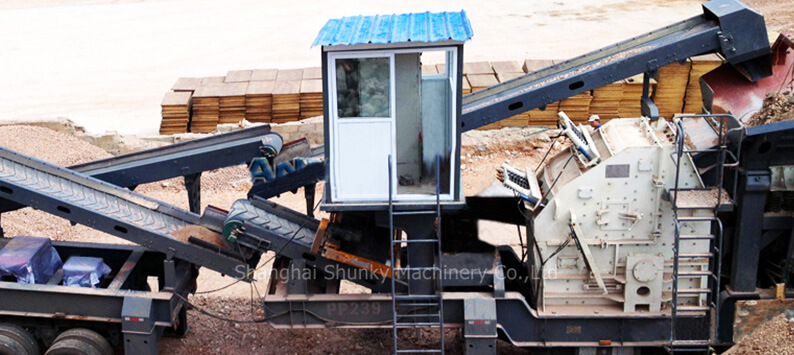

HPF Impact Crusher

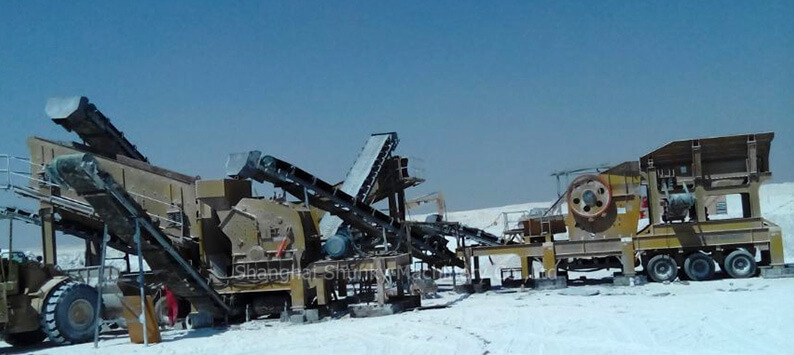

HPF Impact Crusher

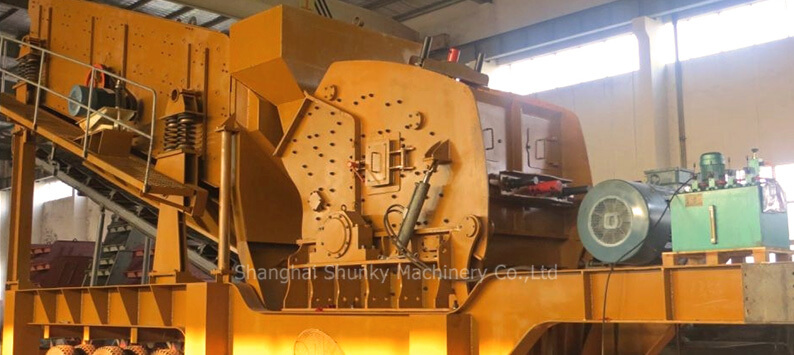

HPF Impact Crusher


02Product Brief Introduction

  • Wicket on frame makes it convenient for maintenance and inspection.

  • Adoption of the world-class manufacturing processes and the most high-end raw materials.

  • Integral bearing and cast steel structure, which is perfectly cooperated with rack, enhances radial strength of the bearing.

  • The special plate hammer fixtures make it more convenient for maintenance and disassembly.

  • New adjustment device shorten the time of halting and overhaul.

  • International advanced bearing, stronger carrying capacity and longer service life.

  • Strict and high standard testing method ensures reliable.

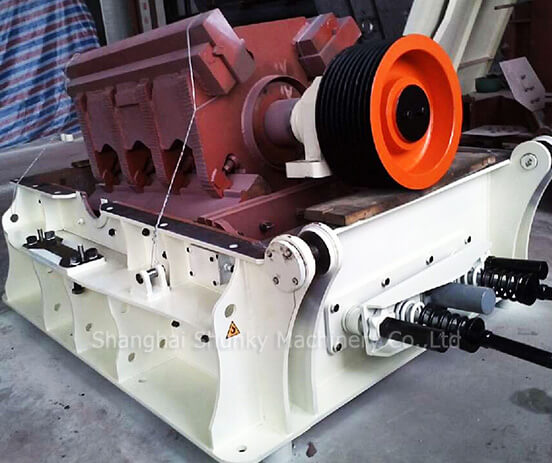

HPF Impact Crusher

03Working Principle

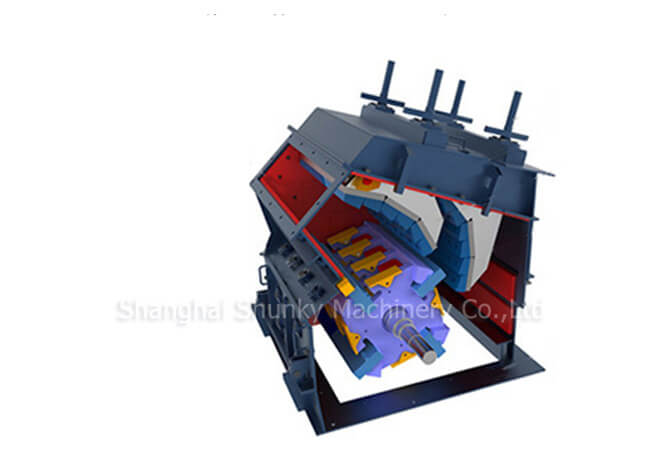

HPF Impact Crusher

HPF Impact Crusher can be used to crush various kinds of coarse, medium and fine materials(granite, limestone, concrete etc.). For the board hammer is easily worn, its applications on the hard materials are limited. It is commonly used to coarse, medium and fine crush brittle materials with medium hard and blow compressive strength such as limestone, coal, calcium carbide, quartz, dolomite, iron sulphide ore, gypsum and chemical materials. This equipment is widely used in ore crushing, construction of railway, highway, energy, cement, chemical, building and other industries. The size for the layout is adjustable. It can produce materials which can meet many requirements.

04Technical Parameters

HPF Impact Crusher

Model

Rotor Size

(mm/inch)

Feeding Opening

(mm/inch)

Ma×. Feeding Size

(mm/inch)

Capacity

(t/h)

Motor Power

(kw)

Weight

(t)

Overall Dimensions

(mm)

HPF-1210

Φ1250×1050

(Φ50"×42")

400×1080(16"×43")

300(12")

70-130

110-132

17

2800×2150×2900

HPF-1214

Φ1250×1400

0Φ50"×56")

400×1430(16"×57")

300(12")

90-180

132-160

20.8

2850×2400×2900

HPF-1315

Φ1320×1500

(Φ52"×60")

860×1520(34"×60")

350(14")

120-250

180-220

24.8

3100×2800×3160

HPF-1318

Φ1320×1800

(Φ52"×72")

880×2000(35"×80")

350(14")

150-260

220-260

26.8

3100×3210×2613

HPF-1320

Φ1320×2000

(Φ52"×80")

900×2030(36"×81")

500(20")

160-350

260-300

34

3320×3218×2613

HPF-1520

Φ1512×2000

(Φ60"×80")

1315×2040(52"×81")

700(28")

300-500

350-450

44

4138×3422×3649

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
