C series European jaw crusher

Metallurgical, mining, chemical, cement, construction, refractory and ceramic industries

Applications: Ores, rocks, slags, etc. with compressive strength not higher than 300mpa.

650 ~ 1200mmFeed particle size 140 ~ 1510t / hCapacity

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

The c-series European jaw crusher is honorably produced by Zhengzhou Jemelon, a well-known rock and mineral processing equipment manufacturer in the industry. It can roughly and moderately crush hard and highly abrasive ores and rocks. It has a removable frame without welding structure, an optimized cavity structure, a double wedge adjusting device, selected raw materials and components, an elastic limit vibration damping device, an integrated motor base and other special designs. It has high crushing efficiency, low investment cost, long service life and stability.

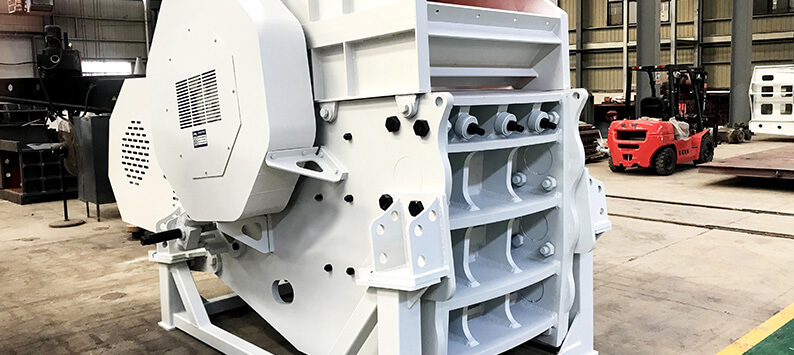

C series European jaw crusher

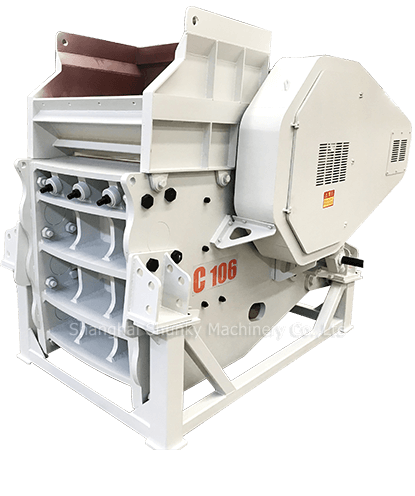

C series European jaw crusher

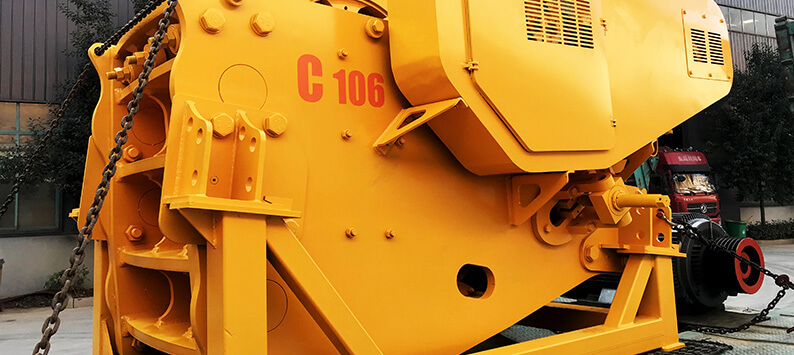

C series European jaw crusher


02Product Brief Introduction

  • After repeated optimization, the actual feeding size of the crushing chamber is increased. With the design of large stroke and steep elbow angle, the stroke at the bottom of the crushing chamber is larger, the throughput capacity of materials is stronger, and the crushing efficiency is greatly improved.

  • The rack adopts the separated design of side wall and front and rear walls. The welded rack is replaced by bolted fixation, which avoids the problem of stress concentration caused by welding and makes the structure more compact and reliable.

  • Wedge adjustment replaces the pad type discharge port adjustment, which can be adjusted mechanically or hydraulically according to needs, so that the discharge port adjustment operation is simpler, time-saving and safer.

  • Elastic limit blocks and rubber damping devices are used to replace the rigid foundation connection, effectively absorbing the peak load of vibration, thus reducing the mutual impact between the crusher and the foundation, reducing the fatigue damage to the foundation and improving the service life of the crusher.

  • Key components such as front wall, rear wall, movable jaw body and bearing seat are made of alloy cast steel, and the main shaft is made of forging materials with higher comprehensive mechanical properties, which can withstand high impact load; SKF, FAG, KTR and other international brands of bearings and couplings are selected; The large side plate, front wall plate and rear wall plate are all processed by gantry CNC milling.

  • Integrated motor base, which is fixed on the crusher to save installation space; The pin hinge belt tensioning scheme makes the power transmission more stable and the adjustment more convenient.

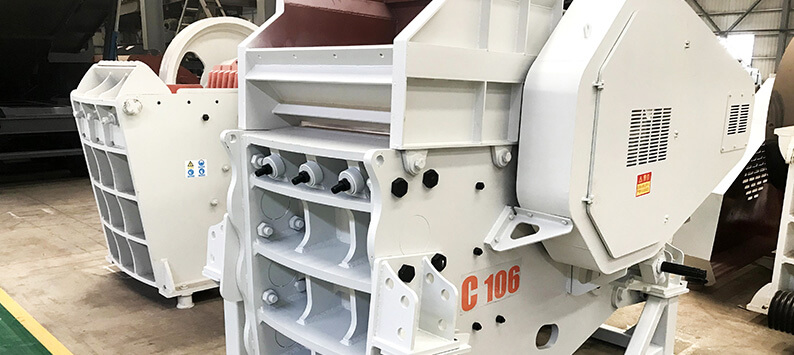

C series European jaw crusher

03Working Principle

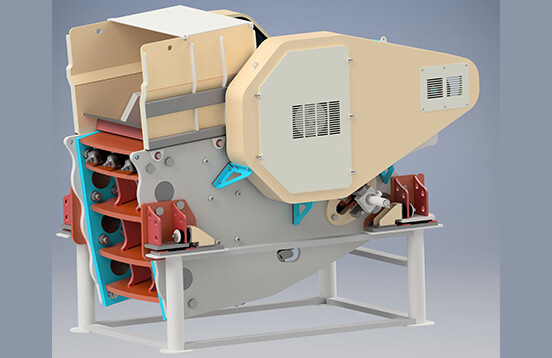

C series European jaw crusher

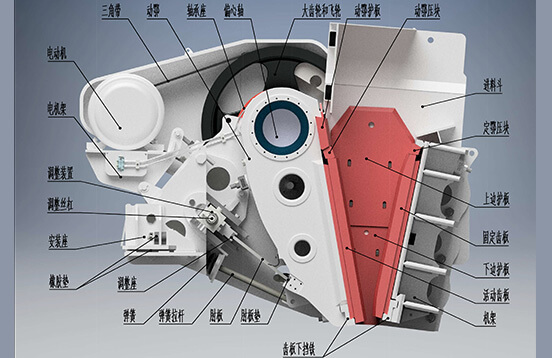

C series European jaw crusher is mainly composed of frame body assembly, jaw plate installation assembly, moving jaw assembly, wheel assembly, adjusting device assembly, transmission tension assembly, foundation installation assembly, feed hopper (optional) and protective cover (optional). C series European jaw crushers usually use motor drive as the power source. The motor inputs power to the pulley through SPC belt, and the pulley drives the eccentric shaft to rotate to drive the moving jaw to swing up and down. When the moving jaw plate moves close to the fixed jaw plate, the volume of the crushing chamber decreases, and the materials in the crushing chamber are squeezed or chopped. When the moving jaw plate moves away from the fixed jaw plate, the volume of the crushing chamber increases, and the small pieces of crushed materials in the crushing chamber are discharged from the discharge port, so as to achieve continuous circulation operation and crushing operation.

04Technical Parameters

C series European jaw crusher

Model Feeding size(mm) Max. Feeding size(mm) Output size(mm) Capacity
(t/h)
Speed(r/min) Power(kw) Overal Dimension
(mm)
C80 520×800 420 60-150 80-290 350 75 2650*1540*1780
C106 700×1060 650 70-200 140-420 310 110 3230*2440*2590
C110 850×1100 720 80-200 160-550 230 160 3800×2450×2550
C125 950×1250 800 100-250 230-760 220 160 4100×2750×2780
C145 1100×1450 920 125-275 320-950 220 200 4400×3060×3210
C160 1200×1600 1020 150-300 410-1150 220 250 5700×3650×3550
C200 1500×2000 1200 175-300 610-1510 200 400 6500×3990×4260

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

PF Impact Crusher

Capacity::15-800 T/H

Learn More

C series European jaw crusher

Feed particle size:650 ~ 1200mm

Learn More

PC Fine Crusher

Capacity:15-100 T/H

Learn More
