VSI Series Sand Making Machine

sand making or shaping for dry mortar, building materials, machine-made sand and various metallurgical slags

Applications: Limestone, river stone, mountain stone, blue stone, pebble, weathered sand, basalt, granite, quartz, diabase,etc

60-640T/HCapacity Soft material < 35-40hard material < 25-35Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

VSI series sand making machine is the latest successful new generation sand making machine with the international advanced technology. Technology accumulation of many years and modern processing equipment ensure the leading position of the VSI series sand making machine in this industry. Excellent cost performance and reliability make VSI sand making machine outstanding in the similar products. VSI sand making machine is the perfect combination of the latest research result of Germany and Chinese present working conditions.

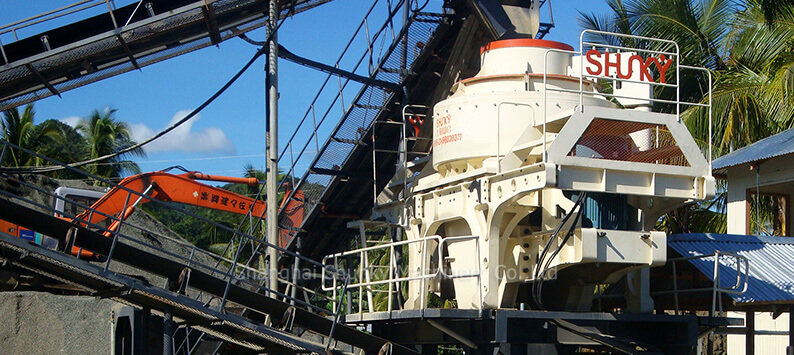

VSI Series Crusher Sand Making Machine

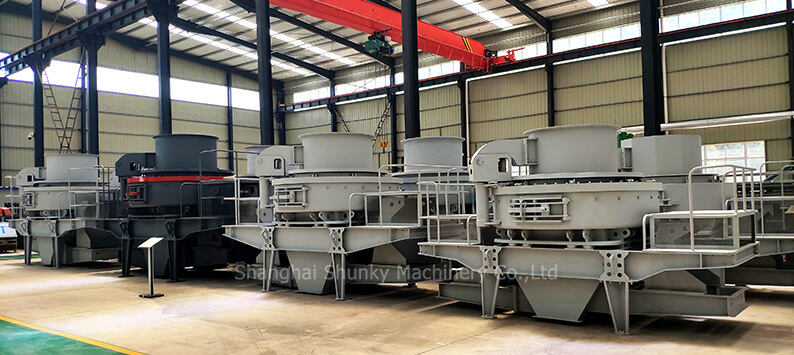

VSI Series Crusher Sand Making Machine

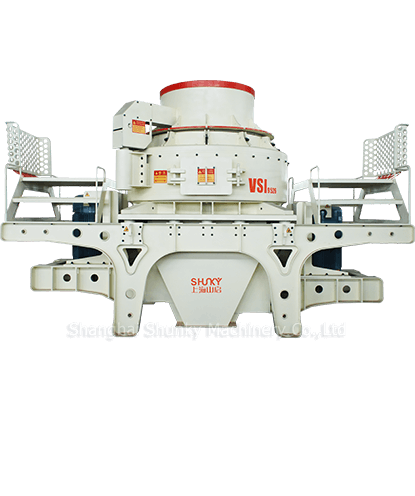

VSI Series Crusher Sand Making Machine


02Product Brief Introduction

  • Large capacity and high output Compared.

    With the traditional equipment with the same motor power, it increases 30% output.

  • Low consumption of wearing parts.

    Excellent designed impact angle in crushing chamber reduces frication between materials and it, consequently reduces 30% operating cost.

  • Fine shape of final product.

    Cubic and good shape, fineness modulus can be adjusted, especially suitable for making artificial sand and stone reshaping. It is proved that the reshaping achievement increases 30%.

  • Hydraulic drive system is convenient to maintain.

    Hydraulic cover opening device is more convenient and easier to replace the wearing parts in crushing cavity. Decreases the downtime and saves time and energy.

  • Simple installation and easy operation.

    Light in weight and diverse means to install. It is very easy to install, maintain, use and repair, if we have a concrete purpose, just adjust it slightly, we could make full use of it.

  • One machine for multi-purpose, flexible application.

    There are wide ranges of crushing chambers and unique crushing structure can make stone hits stone and stone hits iron simultaneously. If we have different purposes,just adjust few parts, we could use it for artificial sand, sand reshaping etc.

VSI Series Crusher Sand Making Machine

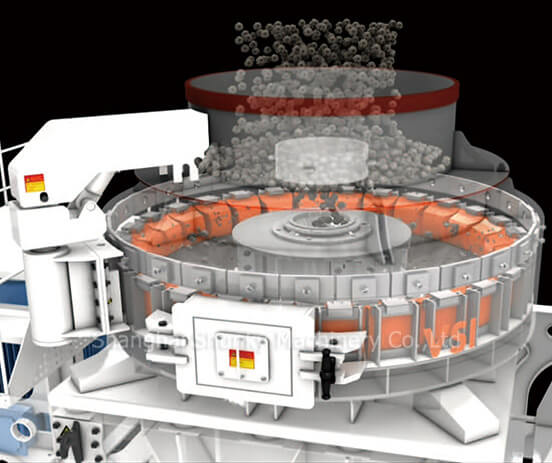

03Working Principle

VSI Series Crusher Sand Making Machine

VSI series vertical shaft impact crusher is the latest successful sand making machine with the international advanced technology.Many years technology accumulation and modern processing equipment ensure the leading position of the VSI vertical shaft impact crusher in this industry. Excellent cost performance and reliability make VSI vertical shaft impact crusher outstanding in the similar products.VSI vertical shaft impact crusher is the perfect combination of the latest research result of Germany and Chinese present working conditions. It is currently the fifth generation of exclusive production sand making machine with the worlds advanced level.

04Technical Parameters

VSI Series Sand Making Machine

Model VSI-7611 VSI-8518 VSI-9526 VSI-1140 VSI-1145

Capacity

(th)

Center and

Ring

Feeding

120-180 200-260 300-380 450-520 500-640

Center

Feeding

60-90 100-130 150-190 225-260 250-360

Max.Feeding

Size  (mm)

Soft

Material

<30   <35 <40 <40   <40

Hard

Material

<25   <30 <35   <35 <35
Rotation Speed (r/min) 1700-1890 1520-1690 1360-1510 1180-1310 1100-1310
Power for Double Motor  (KW) 110-150 180-220 264-320 400-440 400-440
Overall Dimension  (mm) 3850×2136×2360 4564×2400×2661 5020×2535×3050 5034×2760×3170 5100×2790×3320
Power Source 380V;50Hz

Lubrication

Hydraulic

Pressure

Station

Power for

Double  Oil

Pump  (KW)

2×0.31
Safety

The double oil pumps ensure the supply of the oil; Stop working without oil or hydraulic

pressure;Temperature falls when the water cools;Start the motor by heating it in winter.



Overall

Dimension

(mm)

820×520×1270

Power for

Oil  Box

Heater (kw)

2

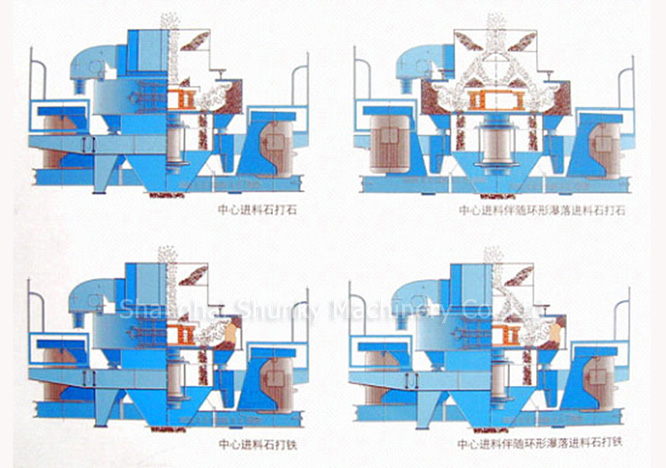

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

LSX Series Spiral Sand Washing Machine

Capacity:100-350T/H

Learn More

XSD Sand Washing Machine

Capacity:20-160T/H

Learn More

VSI Series Sand Making Machine

Capacity:60-640T/H

Learn More

Would you like to know the equipment details and quotation?

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

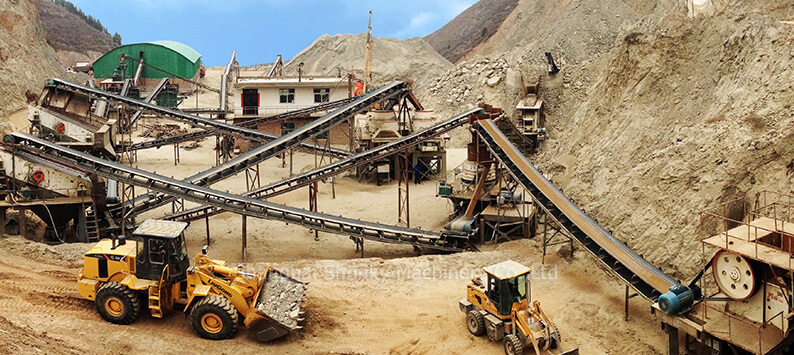

Direct attack on the customer's production site More scene+
