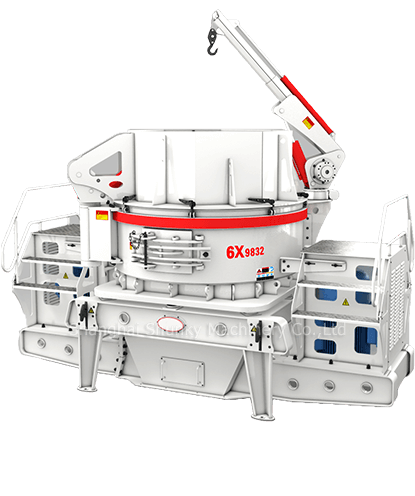

6S Series Sand Making Machine

Mainly used for pebble, limestone, granite, basalt, diabase, andesite, ore tailings, stone chips artificial sand, widely used in building materials, metallurgy, chemical, mining, refractory, cement, abrasive and other industries of material crushing.

Applications: Quartz, feldspar, calcite, limestone, talc, ceramics, marble, granite, dolomite, bauxite, iron ore

236-720T/HCapacity < 50Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

6S new sand making machine is a crushing equipment with lower unit cost, higher crushing efficiency and intelligent operation control developed by our company based on the original high-performance VSI series and combined with the actual operation of the equipment under different working conditions and the feedback suggestions of the operator. By improving feeding mode, optimizing crushing chamber type, adopting new rotor design, adding lifting device and so on, the machine can significantly reduce the material flow resistance, improve the material passing capacity, reduce the wear rate of wearing parts, improve the energy utilization rate, prolong the maintenance cycle, shorten the maintenance time consumption. Now it has become a representative high performance crushing sand equipment in sand machine.

6x Series Sand Making Machine
6x Series Sand Making Machine
6x Series Sand Making Machine


02Product Brief Introduction

  • Large capacity, high yield.

    Feeding mode is improved and easier to adjust; higher spindle speed and greater crushing chamber increased the machine’s capacity in actual production.

  • Lower consumption of wearing parts.

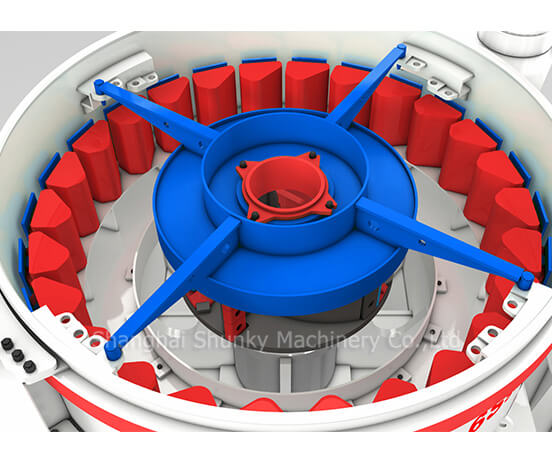

    The optimized crushing chamber makes the best impact angle and reduces friction of wear parts, which directly reduce the cost.

  • Excellent particle shape

    Self-strike crushing principle enables the machine to produce the best particle-shape aggregates.

  • It is easy to maintain because of hydraulic device.

    Hydraulic cover lifting device makes it’s more convenient to inspect and maintain the crushing cavity’s inner parts. Hydraulic lifting device and motor seat adjustment device can significantly reduce downtime.

  • Automatic detection, it’s being safe and reliable.

    The alarm device will give signals if the machine is dysfunctional, then the equipment stop to work quickly to protect the sand making machine.

6x Series Sand Making Machine

03Working Principle

6x Series Sand Making Machine

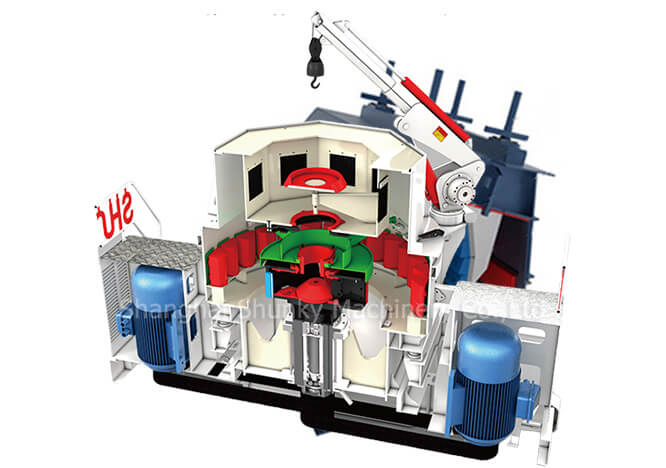

Materials are constantly conveyed to the stuff distributing plate of sand making machine and piled up. When crammed the chamber, the materials naturally fall into the hopper. After getting into the rotating impeller, they are accelerated by the high speed rotating impeller, and then shot through the tunnels around the impeller which can be 10 times of gravity acceleration. These materials in high speed crash with those in free falling (stone on stone), and then impact the plate that fixed on the whirlpool cavity (stone on iron). They will be rebounded and repeat the process again, thus the materials are constantly crushed. After impacted for several times in the whirlpool cavity, the crushed materials will be excluded through the bottom discharging hole.

04Technical Parameters

6S Series Sand Making Machine

型号 Model

6S-9836

6S-1250

6S-1363

处理能力Capacity(T/H)

瀑落与中心进料Center and ring feeding

298-335

520-650

580-720

全中心进料

Center feeding

236-268

325-400

468-518

最大进料边长

Max. feeding length(mm)

软料Soft material

<50

<50

<50

硬料Hard material

<45

<45

<45

转速 Rotation speed(r/min)

1360-1510

1100-1310

980-1180

双电机功率Power of two motors(kw)

(160-180)×2

(250-280)×2

(315400)×2

最大外形尺寸Dimension(mm)

4750×2547×2850

5200×2830×3350

5600×2900×3416

电源 Power source

380V  50Hz



振动传感器监测范围

Monitoring range of vibration sensor

0.1-20mm/s连续可调

0.1-20mm/ continuous and adjustable

液压润滑站

Hydraulic lubrication station

电动机功率

Motor power(kw)

2×0.31

安全保护

Safety

双油泵互补供油,无油流,无油压自动保护,水冷降温,冬季电机加启动

Complementary double pumps ensure oil supply; no oil flow; no-oil-hydraulic-automatic-protection; water cooling; heating boot of motor in winter

外形尺寸Dimension(mm)

820×520×1270

油箱加热器功率

Power of tank heater(kw)

2

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

Sand Recovery Device

Capacity:50-880m³/h

Learn More

PC Fine Crusher

Capacity:15-100 T/H

Learn More

LSX Series Spiral Sand Washing Machine

Capacity:100-350T/H

Learn More
