PE Jaw Crusher

widely used in mining, metallurgy, building materials, roads, railway, water conservancy, chemical industries and so on

Applications: various mineral ores and rocks which anti-pressure do not exceed 320Mpa

:1-1300 T/HCapacity 5.5-450Power(kw)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

PE Jaw crusher is one of the most commonly used equipments in mining machinery. Jaw crusher is generally used for primary crushing, which has many advantages, such as high crushing ratio, high capacity, cubical final product size, simple structure, easy maintenance and so on. Large and medium-sized jaw crusher is one of the leading products of our company, we have reached the advanced world level in both technology and processing technic. Jaw crusher is widely used in construction, highway, railway, chemical industry, hydraulic power, metallurgical industry, mining industries, etc.

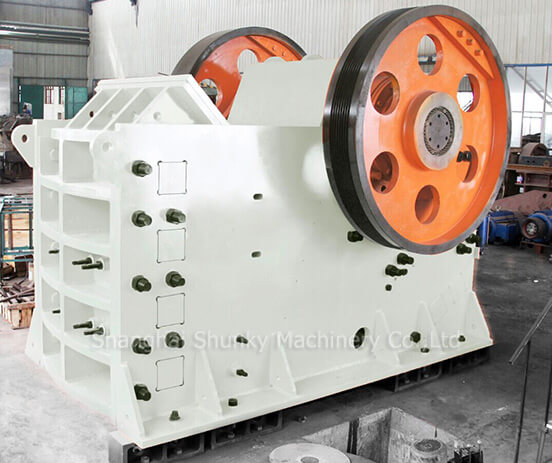

PE Jaw Crusher

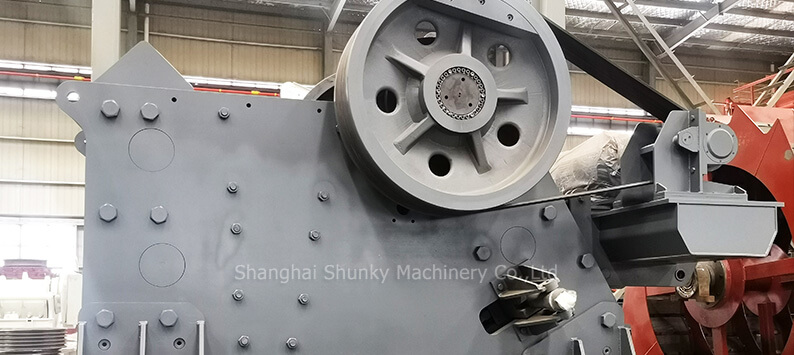

PE Jaw Crusher

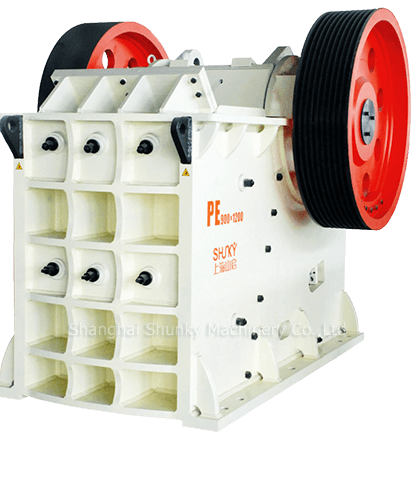

PE Jaw Crusher


02Product Brief Introduction

  • Deep crushing cavity and high crushing ratio;

  • Gasket type adjustment device for discharge hole

    Gasket type adjustment device for discharge hole, reliable and convenient, with large adjustment range and increase the flexibility of equipment.

  • Centralized lubrication system, fast, safe, reliable and low maintenance.

  • Simple structure, reliable work and low cost for operating.

  • large adjustment range can meet the requirements of different users.

  • Energy-saving and environmental friendly, little noise and dust;

  • Spare parts are wearable and with long life service;

PE Jaw crusher

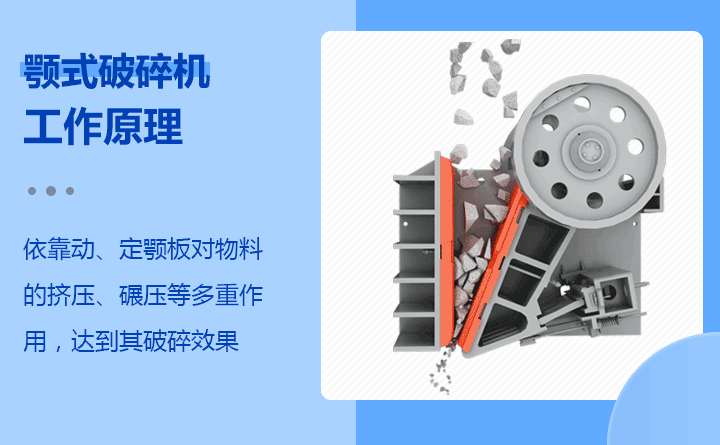

03Working Principle

PE Jaw Crusher

PE Jaw Crusher is used in primary and secondary crushing. The largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.

04Technical Parameters

PE Jaw Crusher

Model

Opening Size

(mm)

Max. Feeding Size

(mm)

Discharge Size

(mm)

Capacity

(t/h)

Power

(KW)

Dimension

(mm)

PE-250×400

400×250

200

20-50

5-20

15

1430×1310×1340

PE-400×600

600×400

350

40-100

15-60

30-37

1700×1732×1653

PE-500×750

500×750

425

50-100

40-110

45-55

2035×1921×2000

PE-600×900

900×600

480

65-160

90-180

55-75

2290×2206×2370

PE-750×1060

1060×750

630

80-140

110-320

90-110

2655×2302×3110

PE-900×1200

900×1200

750

95-165

220-450

110-132

3800×3166×3045

PE-1200×1500

1200×1500

1020

150-300

400-800

160-220

3800×3166×3045

PE-1500×1800

1500×1800

1200

220-350

450-1000

355

5630×3210×4120

PE-1600×2100

1600×2100

1280

175-300

800-1300

450

5220×4990×4850

PEX-150×250

150×250

125

10-40

1-3

5.5

896×745×935

PEX-150×750

150×750

125

18-48

5-16

15

896×745×935

PEX-250×750

750×250

210

25-60

15-30

22-30

1667×1545×1020

PEX-250×1000

1000×250

210

25-60

15-50

30-37

1550×1964×1380

PEX-250×1200

1200×250

210

25-60

20-60

37-45

2192×1900×1950

PEX-300×1300

300×1300

250

20-90

16-100

75

1880×2320×1725

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
