LSX Series Spiral Sand Washing Machine

Construction site, sand and stone factory, hydro power station, metallurgy, building materials, and other industries washing.

Applications: Limestone, river stone, blue stone, pebble, weathered sand, basalt, granite, quartz, diabase etc.

100-350T/HCapacity ≤10Max.feeding Size(mm)

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

LSX series spiral sand washing machine can clean and separate powder and soil in sand and stone, its novel sealing structure, reliable transmission device, ensure the effect of cleaning and dehydration, and is a kind of high efficiency sand washing equipment used with sand making machine. LSX series spiral sand washing machine has two kinds of single rotation and double rotation. The equipment is characterized by large capacity, small power consumption, high cleanliness, less sand loss during sand washing, and no screen mesh. it is the sand washing industry upgrade ideal choice.

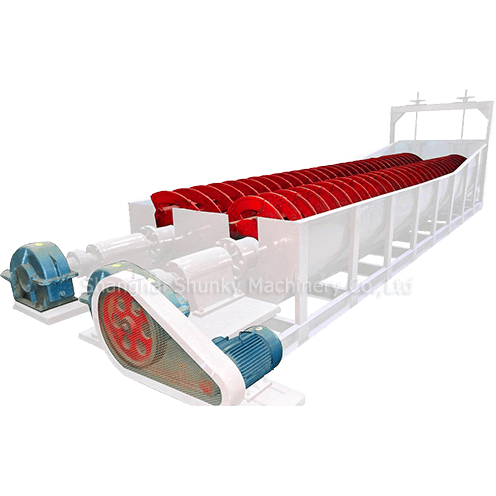

LSX series spiral sand washing machine

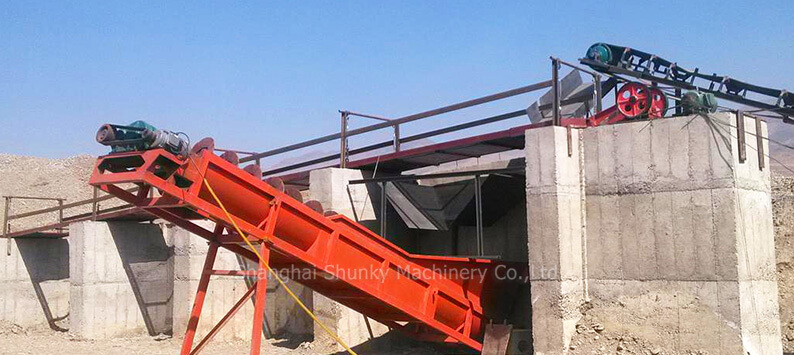

LSX series spiral sand washing machine

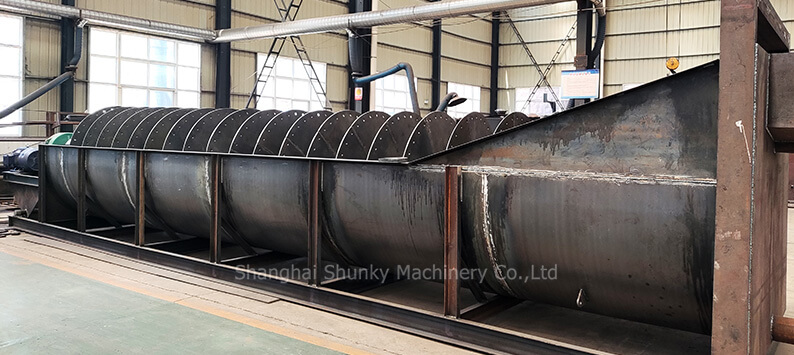

LSX series spiral sand washing machine


02Product Brief Introduction

  • Big capacity, the working principle of spiral sand washer isn’t collect by wheel bucket, so the handling capacity has been greatly improved.

  • Higher energy efficiency, reduce the energy loss by wheel bucket, so spiral sand washing machine can make better use of energy.

  • Reduce the wear of spare parts, spiral sand washer without screen, so without wear of screen mesh, long life for using.

  • More cleaning effect for washing, compare to wheel sand washer, the materials washing time is longer, and cleaning effect is more better.

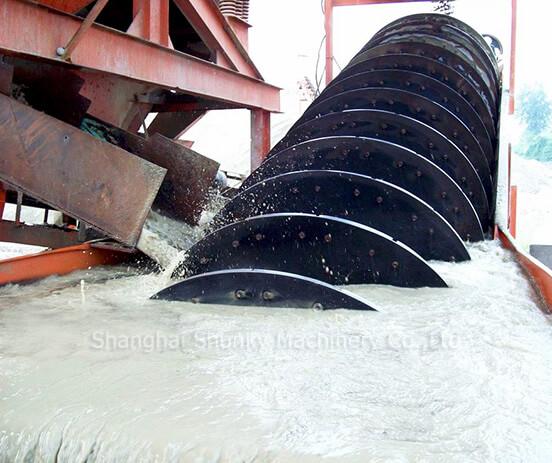

LSX series spiral sand washing machine

03Working Principle

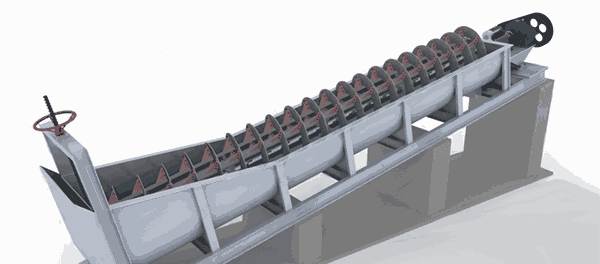

LSX series spiral sand washing machine

When screw sand washing machine is working, the material goes into the input part. It will push the material to the output through the machine. Surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. The final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.

04Technical Parameters

LSX Series Spiral Sand Washing Machine

型号Model

螺旋数量No. Of spirals

螺旋直径diameter of screw (mm)

水槽长度Flume length(mm)

入选粒度feeding size(mm)

处理能力capacity (t/h)

螺旋转速speed (rpm)

电机功率motor(kw)

耗水量 water consumption (t/h)

机器重量weight (t)

外形尺寸 dimension(L×W×H)

LSX-920

1

920

7585

≤10

100

21

11

10-80

6.2

8420×2180×3960

2LSX-920

2

920

7585

≤10

200

21

11×2

20-160

11.5

8420×3970×3960

LSX-1120

1

1120

9750

≤10

175

17

18.5

20-150

10.9

10770×3950×4860

2LSX-1120

2

1120

9750

≤10

350

17

18.5×2

40-300

17.8

10770×5260×4860

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
