HP Series Cone Crusher

widely used in quarry, mining, coal mining, concrete mixing station, dry mortar,power plant and so on.

Applications: river stone, granite, basalt, iron ore, quartz, diabase, iron ore, gold ore, copper ore, etc

90-1200 T/HCapacity 132-630Power(kw)


Request a Quotation

01Product Features

HP Series Hydraulic Cone Crusher is manufactured and designed through absorbing the latest world advanced technology and gets to be world advanced level. It is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks. HP Series Hydraulic Cone Crusher has high performance, optimized design of stroke, rotate speed and crushing cavity achieves the effect of grinding, which increases the productivity and improves product shape.HP Series Hydraulic Cone Crusher possesses greater superiority than ordinary ones.

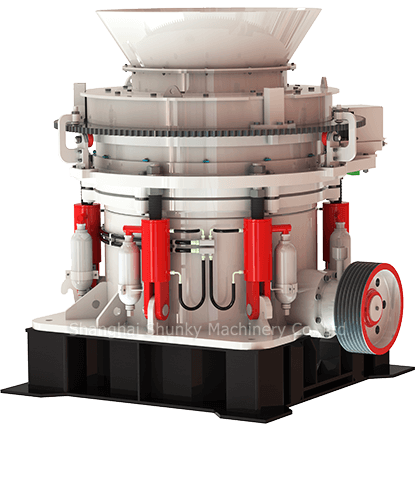

HP Series Multi-cylinder Hydraulic Cone Crusher

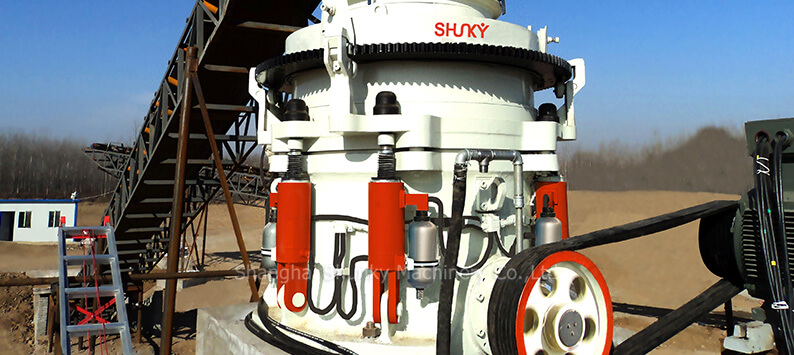

HP Series Multi-cylinder Hydraulic Cone Crusher

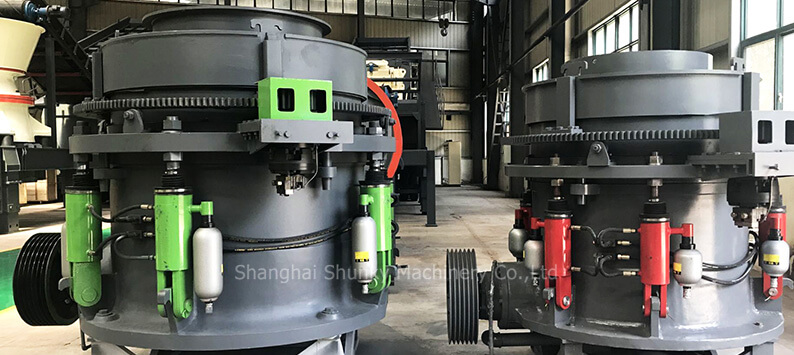

HP Series Multi-cylinder Hydraulic Cone Crusher

02Product Features

  • Optimized design of driveline, lubricating and sealing constructs.

    Upgraded structure and high efficiency. Transmission parts and the structure of lubrication seal are optimized further based on the structure of fixed main shaft and eccentric shaft rotates around main shaft. This machine has the features of stronger loading capacity, the biggest installed power in the same model of this industry, smaller size, higher efficiency, lower noise.

  • The best cavity design and adjustable stroke

    High handling capacity. The perfect combination of crushing stroke, crushing speed and crushing chamber makes the capacity increase by 35%-60% than traditional spring cone crusher in production.

  • Laminated crushing brings good product shape.

    The materials are crushed under the adoption of unique laminated crushing principle, and the efficiency is higher because of the optimized equipment and cavity. Meanwhile high crushing efficiency brings lower consumption of wearing part, cubic finished product shape and high content fine-grained product, which improves the quality of finished product and decreases the cost of equipment and whole system.

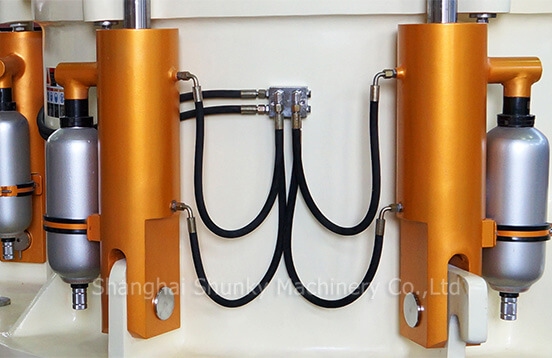

  • Accurate and reliable full hydraulic operation.

    Full hydraulic operation is applied on cleaning cavity, overload protection, adjustment and locking. It works stably and reliably and operates conveniently .Meanwhile the structure of hydraulic system is optimized fully, the adjustment and control are more accurate, the responding of automatic protection is more sensible.

  • Convertible multi-cavity&multiple functions.

    HP series multi-cylinder hydraulic cone crusher has several medium crushing and fine crushing cavities, which can be only with changing relevant several parts as cavity lining plate, etc. It meets the process requirements of medium crushing and fine crushing better with combining the laminated crushing principle, realizing multiple functions.

HP Series Multi-cylinder Hydraulic Cone Crusher

03Working Principle

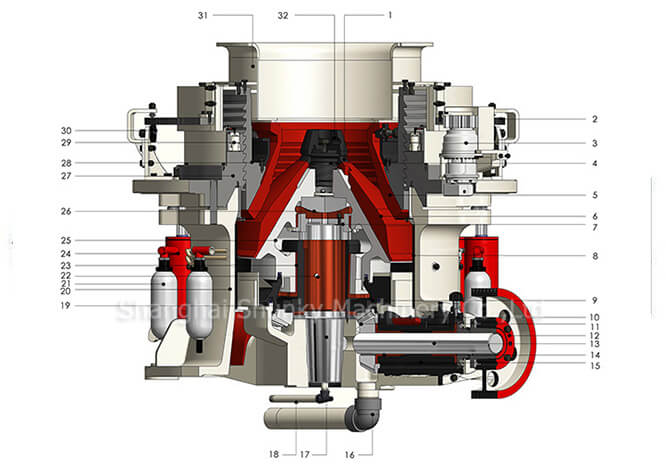

HP Series Multi-cylinder Hydraulic Cone Crusher

The whole working process of HP multi-cylinder hydraulic cone crusher is that motor drives the rotation of transmission shaft by belt pulley and v-belts, then transmission shaft drives the rotation of eccentric sleeve around the main shaft through the spiral bevel gear, breaking the materials continuously.The material is crushed from all directions, crushed and ground according to their own grain, which formed the high compressive strength building aggregates. The materials that meet the requirements discharged from the crushing wall, and the remaining material continues to be crushed until it becomes standard product.

04Technical Parameters

HP Series Cone Crusher

Model Type of chamber Standard Short head Power(kw) capacity(t/h)
Feed Opening(mm) Min.Output size(mm) Feed Opening(mm) Min.Output size(mm)
HP200 Coarse 185 19 76 10 132-200 90-255
Medium 125 17 54 6
Fine 95 13 23 6
Super fine - - 10 5
HP300 Oversize 230 25 -   180-250 115-440
Coarse 210 20 75 10
Middle 150 15 50 8
Fine 105 10 20 6
Superfine - - 25 6
HP400 Oversize 295 30 - - 280-335 140-630
Coarse 250 25 90 10
Middle 195 20 50 8
Fine 110 14 40 6
Superfine - - 30 6
HP500 Oversize 330 30 - - 355-450 175-790
Coarse 285 25 90 13
Middle 200 20 55 10
Fine 133 16 40 8
Superfine - - 35 6
HP800 Oversize 353 32 - - 550-630 260-1200
Coarse 297 32 155 13
Middle 267 25 92 10
Fine 219 16 33 6

05Working Principle


Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
